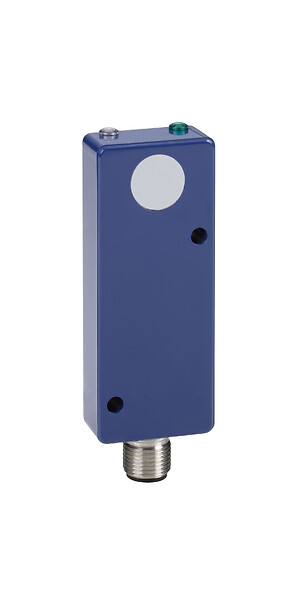

XX7K1A2PAM12
Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.25 m, NO, M12 connector
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XX7
Sensor design
Flat form 74 x 30 x 16
Detection system
Diffuse
Material
Plastic
Type of output signal
Discrete
Discrete output function
1 NO
Wiring technique
3-wire
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Discrete output type
PNP
Electrical connection
Male connector M12 4 pins
Enclosure material
ULTEM
Front material
Silicone
Voltage drop
1 VOLT
Minimum size of detected object
Cylinder diameter 1.6 mm
Delay first up
350 MILLISECOND
Current consumption
< 60 mA
Status LED
Supply on: 1 LED (green), output state: 1 LED (yellow)
Switching frequency
<= 80 Hz
Delay response
5 MILLISECOND
Delay recovery
5 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Marking
CE
Standards
IEC 60947-5-2
Product certifications
UL
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.06 CENTIMETER
Package 1 width
8.64 CENTIMETER
Package 1 length
8.89 CENTIMETER
Package 1 weight
0.7 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
30
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Unit type of package 2
S01
Package 3 weight
2.255 KILOGRAM
Number of units in package 2
15
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.218 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Minimum Mounting Distances
Side by side
- e : respect the distances indicated on the detection curves
Wiring Diagram
3-Wire Type
- (1) (+)
- (3) (-)
- (4) Output
- BN Brown
- BU Blue
- BK Black
Curves
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
