XX8D1A1PAM12

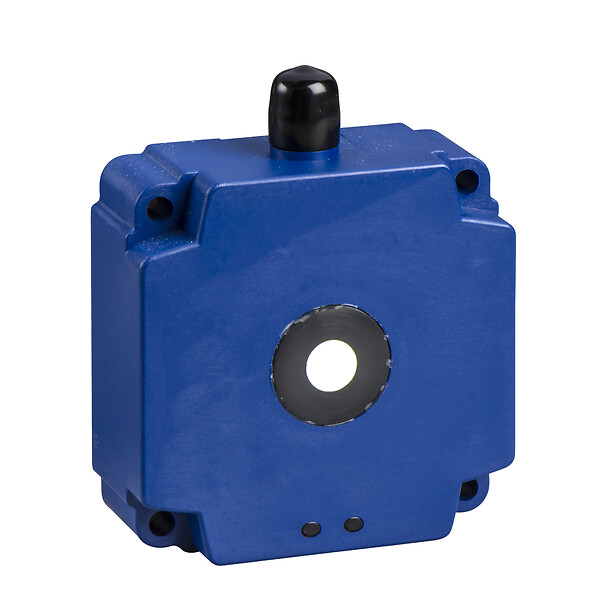

Ultrasonic sensors XX, ultrasonic sensor 80x80, Sn 1 m, NO, M12 connector
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XX8
Sensor design
Flat form 80 x 80 x 34
Detection system
Diffuse
Material
Plastic
Type of output signal
Discrete
Discrete output function
1 NO
Wiring technique
4-wire
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Discrete output type
PNP
Electrical connection
Male connector M12 4 pins
Enclosure material
Valox
Front material
Epoxy
Voltage drop
1.5 VOLT
Minimum size of detected object
Cylinder diameter 50.8 mm at 1 m
Delay first up
75 MILLISECOND
Current consumption
< 60 mA
Status LED
Setting-up assistance: 1 LED (dual colour), supply on: 1 LED (green), output state: 1 LED (yellow)
Switching frequency
<= 70 Hz
Delay response
15 MILLISECOND
Delay recovery
75 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Marking
CE
Standards
IEC 60947-5-2
Product certifications
CCSAus
UL
UL
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.41 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
13.2 CENTIMETER
Package 1 weight
0.32 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
13
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Unit type of package 2
S01
Package 3 weight
4.666 KILOGRAM
Number of units in package 2
13
Package 2 height
15 CENTIMETER
Package 2 width
14.8 CENTIMETER
Package 2 length
39.8 CENTIMETER
Package 2 weight
4.16 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Minimum Mounting Distances
Side by side
- e : respect the distances indicated on the detection curves
Wiring Diagram
3-Wire Type
- (1) (+)
- (2) Teach input (WH)
- (3) (-)
- (4) Output
- BN Brown
- WH White
- BU Blue
- BK Black
Curves
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
