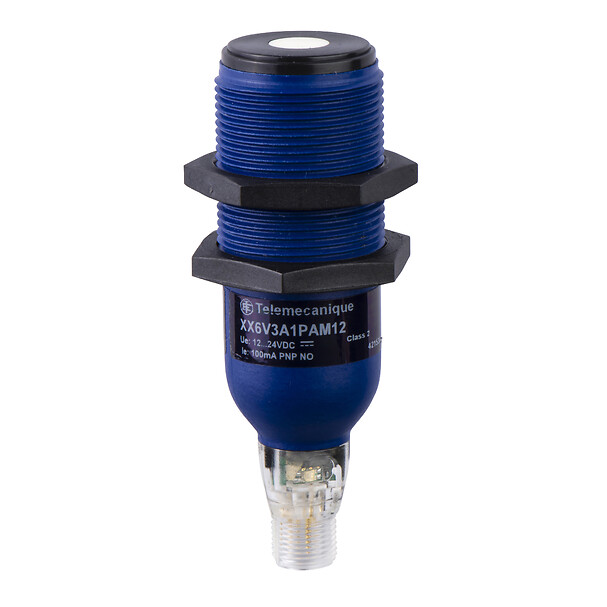

XX9V3A1F1M12
Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 1 m, 0...10 V, M12 connector
End of commercialisation End of commercialization date : End of service date :
XX9V3A1F1M12 is replaced by the following product:
XXS30P1VM12
Ultrasonic sensors XX, ultrasonic sensor, plastic, cylindrical M30, straight, 1 m, 0...10 V
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XX9
Sensor design
Cylindrical M30
Detection system
Diffuse
Material
Plastic
Type of output signal
Analogue
Wiring technique
4-wire
Analogue output function
0...10 V
[Us] rated supply voltage
15...24 V DC with reverse polarity protection
Electrical connection
Male connector M12 4 pins
Enclosure material
Valox
Front material
Epoxy
Thread type
M30 x 1.5
Minimum size of detected object
Cylinder diameter 50.8 mm at 1 m
Delay first up
1200 MILLISECOND
Current consumption
< 60 mA
Status LED
Setting-up assistance: 1 LED (dual colour), supply on: 1 LED (green), output state: 1 LED (yellow)
Maximum switching capacity
2 kOhm overload and short-circuit protection
Setting-up
Slope selection using teach button
Delay response
250 MILLISECOND
Delay recovery
250 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Marking
CE
Standards
IEC 60947-5-2
Product certifications
CCSAus
UL
UL
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
9.525 CENTIMETER
Package 1 length
3 CENTIMETER
Package 1 weight
226.796 GRAM
Unit type of package 2
S03
Number of units in package 2
15
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.902 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Minimum Mounting Distances
Side by side
- e : respect the distances indicated on the detection curves
Minimum Mounting Distances
Face to face
- e : respect the distances indicated on the detection curves
- e > 4 x Sn
Wiring Diagram
4-Wire Type
- (1) (+)
- (2) Return signal or teach
- (3) (-)
- (4) Output signal
4-Wire Type
- (1) (+)
- (2) Return signal or teach
- (3) (-)
- (4) Output signal
- BN Brown
- WH White
- BU Blue
- BK Black
Curves
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
