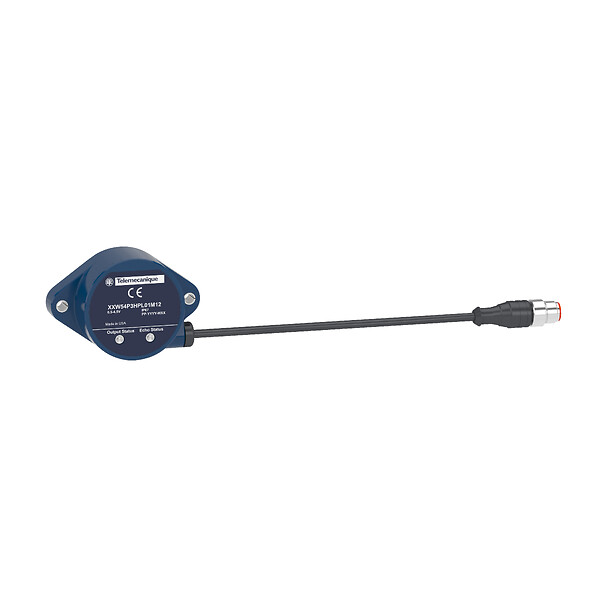

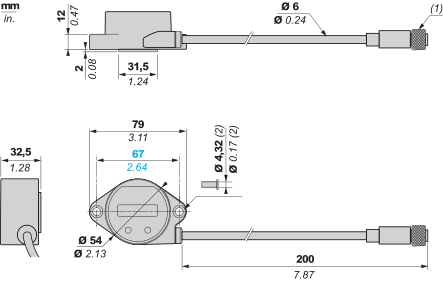

Technical Drawings
(1): M12 connector (male, 5-pin).
(2): The sensor is supplied with 2 stainless steel inserts Ø 4.32 mm and 2 silicone washers. M4 screws not provided.
Connector wiring
Pin Number | Wire Color | Description |
---|---|---|
1 | BN: Brown | + 12…24 V |
2 | WH: White | PNP Digital Output |
3 | BU: Blue | 0 V |
4 | BK: Black | 0.5…4.5 V Analog Output |
5 | GY: Grey | Synchronization |
Connector model: M12 male 5-pin
(1): Synchronization
(2): Output 2
(3): Output 1

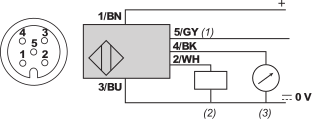

Wiring diagram
(1): Synchronization
Analog output load: 2 kΩ…∞
Synchronization function diagram (side by side application)
(1): Synchronization
Note: Up to 8 sensors can be synchronized to operate side by side by electrically connecting all pin no.6 (grey) wires together. All sensors must be the same model and have the same cycle time setting.
Detection curve with 100 x 100 mm / 3.94 x 3.94 inches square target
(X): Target distance
(Y): Detection limit
(1): Blind zone: 425 mm / 16.7 inches
(2): Far limit
(3): Sn max.
(4): 100 x 100 mm / 3.94 x 3.94 inches stainless steel plate
Detection curve with round bar
(X): Target distance
(Y): Detection limit
(1): Blind zone: 425 mm / 16.7 inches
(2): Sn max.
(3): Ø 10 mm / 0.394 inches stainless steel cylinder
(4): Ø 25 mm / 0.984 inches stainless steel cylinder
L: 1 m / 3.28 ft.
Flush mounting recommendations
(1): E max: 10 mm / 0.39 in.
(2): Ø min: 33 mm / 1.3 in.
Tightening torque
A ≤ 3 Nm / 26.6 Ib-in
(1): 2 silicone washers provided with the sensor
(2): 2 stainless steel inserts provided with the sensor
(3): 2 M4 screws (not provided)
Mutual interference between two separate pieces of mobile equipment, side by side
Sensors in the same mobile equipment must be synchronized, but sensors in two separate pieces of mobile equipment cannot be synchronized
D min: 2,5 m /8.2 ft.
Note: For the side by side use, consider the machine manufacturer's prescriptions without ever going below the 2,5 m / 8.2 ft.
