Datasheet
Technical Drawings

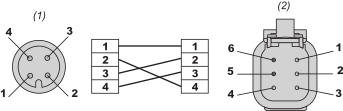

Cable with one male M12 4-pin connector and one female Deutsch DTM04 6-pin connector
(1): M12 connector (male, 4-pin).
(2): Deutsch connector DTM04 (female 6-pin).
Configuration cable
Pin Number | Wire Color | Description |
---|---|---|
1 | Brown | 24 V , power to sensor |
2 | White | Software communication |
3 | Blue | 0 V |
4 | Black | Software communication |
Pin Number | Wire Color | Description |
---|---|---|
1 | Brown | 24 V , power to sensor |
2 | Blue | 0 V |
3 | Black | Software communication |
4 | White | Software communication |
5 | — | Contact not connected, equipped with a sealing plug |
6 | — | Contact not connected, equipped with a sealing plug |

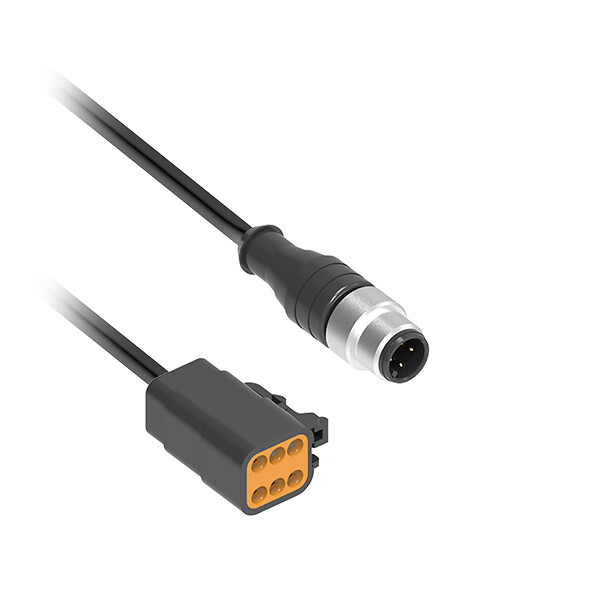

Cable with one male M12 4-pin connector and one female Deutsch DTM04 6-pin connector
(1): M12 connector (male, 4-pin)
(2): Deutsch connector DTM04 (female, 6-pin)
Documents & Downloads
11/23/2023
17.9 MB
11/23/2023
18.1 MB
11/23/2023
17.9 MB
11/23/2023
18.0 MB
11/22/2023
195.3 kB
11/22/2023
195.3 kB
11/22/2023
1.7 MB
Related products & accessoires

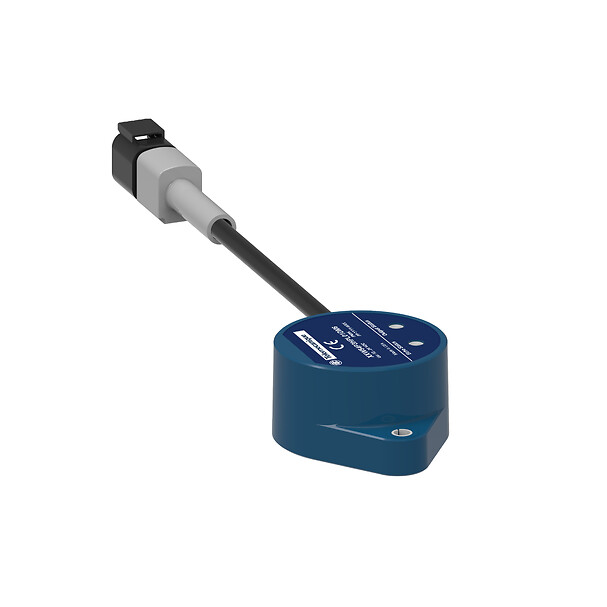

Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, 0.5…4.5V+PNP, 0.5m cable
