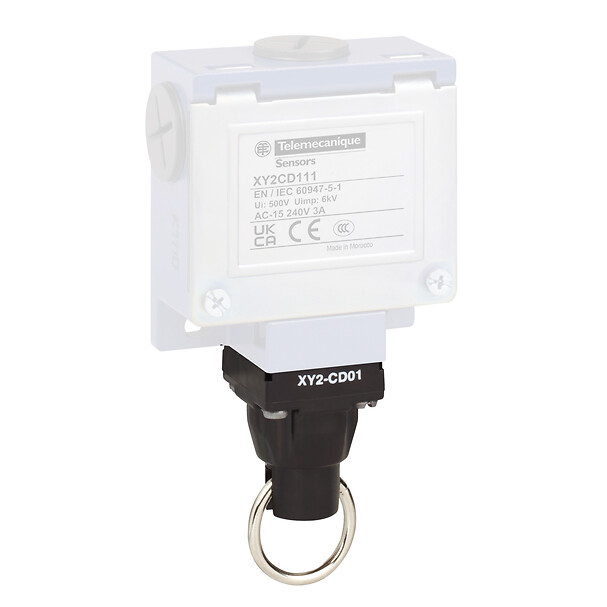

XY2CD01
Head for simple rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, XY2Cd11 cable sw 240 VAC 10 A
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Product or component type
Head for simple rope pull switch
Device short name
XY2CD
Housing colour
Black
Body material
Plastic
Operating force
237 daN operating head
36 daN operating ring
36 daN operating ring
Compatibility code
XY2CD
Product certifications
CCC
CE
CE
Ambient air temperature for operation
-20…70 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.5 cm
Package 1 Width
4.5 cm
Package 1 Length
6.0 cm
Package 1 Weight
48.0 g
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
11/22/2023
195.3 kB
11/22/2023
195.3 kB
Expand all
Related products & accessoires

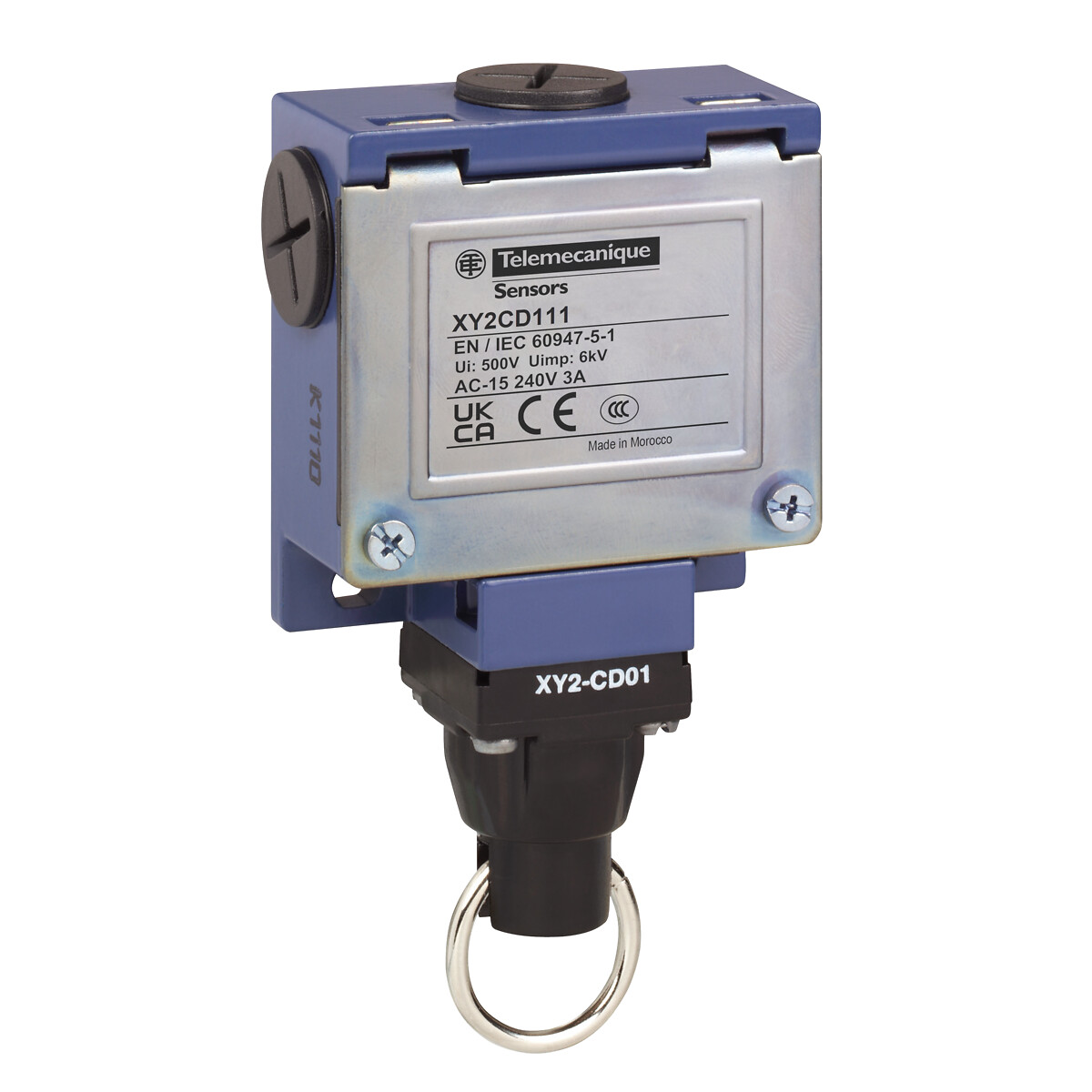

XY2CD111
Simple rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, cable 240 VAC 10 A XY2Cd
