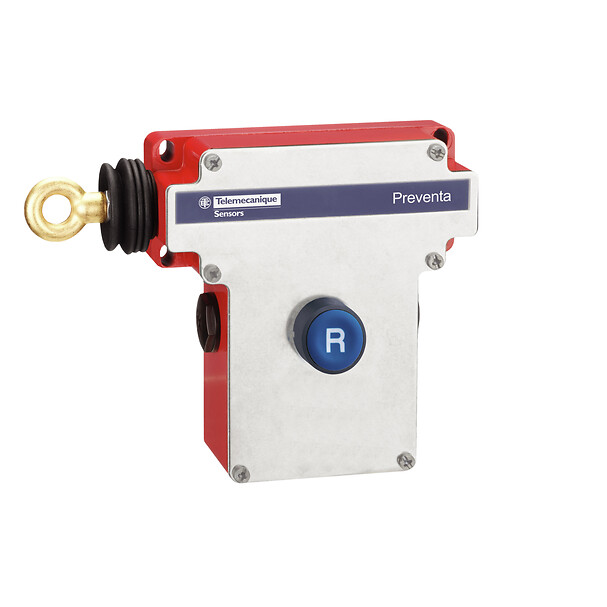

XY2CE1A196H7
Latching emergency stop rope pull switch XY2CE, RH side, 300 VAC 10 A
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Product or component type
Latching emergency stop rope pull switch
Device short name
XY2CE
ETIM classification
ETIM 9 - EC002033 - Emergency stop pull cord switch
Cover material
Stainless steel
Body material
Zamak
Safety level
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data
B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Trigger cable anchor point
RH side
Product certifications
UL category NISD emergency stop devices, CSA, CCC
Marking
CE
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-5
ISO 13850
machinery directive 2006/42/EC
UL 508
work equipment directive 2009/104/EC
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-5
ISO 13850
machinery directive 2006/42/EC
UL 508
work equipment directive 2009/104/EC
Indivisible sale quantity
1
Mechanical durability
60000 cycles
Reset
By flush push-button
Cable entry number
3 plain hole for Pg 13.5 or ISO M20 cable gland
Contacts type and composition
1 NC + 1 NO
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Contact operation
Slow-break
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
[Ui] rated insulation voltage
500 V (pollution degree 3) conforming to IEC 60947-1, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
[Ie] rated operational current
3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1 appendix A, 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Short-circuit protection
10 A cartridge fuse type gG conforming to IEC 60269
Local signalling
Without pilot light
Connections - terminals
Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
Positive opening
With conforming to IEC 60947-5-1
Product weight
1.45 kg
IP degree of protection
IP66 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
50 gn 11 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
MA (Morocco)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916065983
Package 1 height
9 cm
Package 1 width
16 cm
Package 1 length
20 cm
Package 1 weight
1.652 kg
Unit type of package 2
S03
Number of units in package 2
6
New Package 2 GTIN 14
13666916065980
Package 2 height
30 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
10.436 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916065987
Package 3 height
40 cm
Package 3 width
15 cm
Package 3 length
30 cm
Package 3 weight
1.652 kg
