XY2CE3A010H7

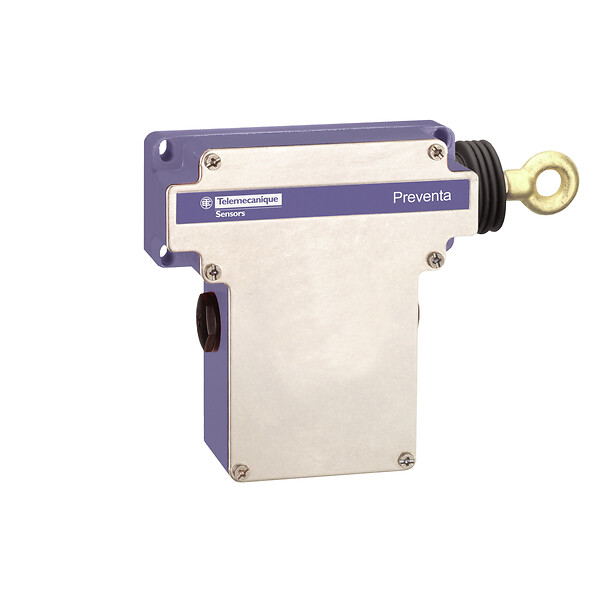

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Product or component type
Latching emergency stop rope pull switch
Device short name
XY2CE
Housing colour
Blue
Overvoltage category
Class I conforming to EN/IEC 61140
Class I conforming to NF C 20-030
Class I conforming to NF C 20-030
Local signalling
Without pilot light
Number of cables
1
Trigger cable maximum length
50 m
Body material
Zamak
Cover material
Stainless steel
Reset
Without
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Trigger cable anchor point
RH side
Connections - terminals
Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
Tightening torque
0.8…1.2 N.m
Cable entry number
3 tapped entry for Pg 13.5 cable gland
Marking
CE
Mechanical durability
60000 cycles
Distance between cable supports
5 m
[Ie] rated operational current
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V (pollution degree 3) conforming to EN/IEC 60947-1
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage
6 kV conforming to EN/IEC 60947-1
Positive opening
With conforming to EN/IEC 60947-5-1
Maximum resistance across terminals
25 MOhm conforming to EN/IEC 60255-7 category 3
25 MOhm conforming to NF C 93-050 method A
25 MOhm conforming to NF C 93-050 method A
Short-circuit protection
10 A cartridge fuse type gG conforming to EN/IEC 60269
Compatibility code
XY2CE
Standards
EN/IEC 60947-5-1
Product certifications
CSA
Protective treatment
TC
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Vibration resistance
10 gn (f= 10…300 Hz) conforming to EN/IEC 60068-2-6
Shock resistance
50 gn 11 ms conforming to EN/IEC 60068-2-27
IP degree of protection
IP66 conforming to IEC 60529
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.000 cm
Package 1 Width
16.000 cm
Package 1 Length
22.100 cm
Package 1 Weight
1.591 kg
Unit Type of Package 2
S03
Number of Units in Package 2
6
Package 2 Height
30.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
10.096 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
