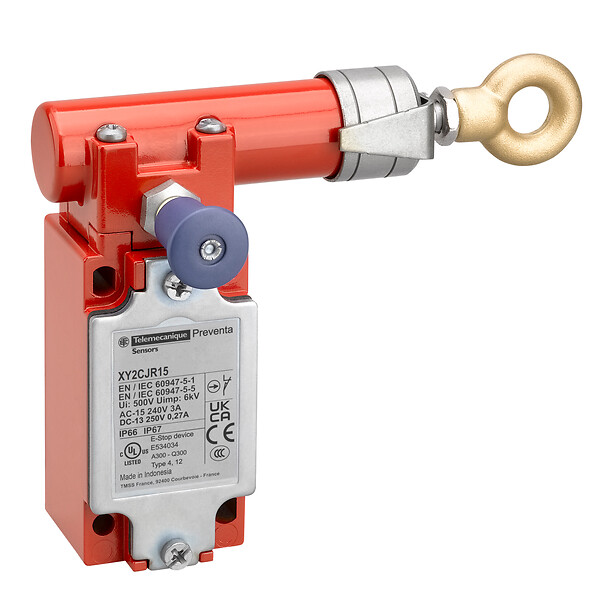

XY2CJR15
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, right side, 1NC+1 NO, Pg13.5
COMMERCIALISED
Expand all
Datasheet
Product or component type
LTHG MRGC SP ROPE PULL SWITCH
Device short name
XY2C
Housing colour
Red RAL 3000
Overvoltage category
Class I conforming to EN/IEC 61140
Local signalling
Color indicator
Body material
ZAMAK
Cover material
GALVANISED STEEL
Reset
BY PULL BUTTON
Contacts type and composition
1 NC 1 NO
Contact operation
SLOW BREAK
Trigger cable anchor point
RH SIDE
Connections - terminals
Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
Safety level
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1,
can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1,
can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1,
can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data
B10d = 500000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking
CE
Positive opening
With conforming to EN/IEC 60947-5-1
Resistance across terminals
25 MOhm conforming to EN/IEC 60255-7 category 3,
25 MOhm conforming to NF C 93-050 method A
25 MOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
13 14NO
21 22NC
21 22NC
Compatibility code
XY2CJ
Standards
CSA C22 2 NO 14
EN IEC 60204 1
EN IEC 60947 5 1
EN IEC 60947 5 5
EN ISO 13850
MACHINERY DIRECTIVE 2006 42 EC
UL 508
WORK EQPMT DRTV 2009 104 EC
EN IEC 60204 1
EN IEC 60947 5 1
EN IEC 60947 5 5
EN ISO 13850
MACHINERY DIRECTIVE 2006 42 EC
UL 508
WORK EQPMT DRTV 2009 104 EC
Product certifications
UL category NISD emergency stop devices,
CSA,
CCC,
EAC
CSA,
CCC,
EAC
Protective treatment
TC
Vibration resistance
10 gn (f= 10-150 Hz) conforming to EN/IEC 60068-2-6
Shock resistance
50 gn 11 ms conforming to EN/IEC 60068-2-27
IP degree of protection
IP66 conforming to IEC 60529,
IP67 conforming to IEC 60529
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.8000 CENTIMETER
Package 1 width
15.9000 CENTIMETER
Package 1 length
20.3000 CENTIMETER
Package 1 weight
787.0000 GRAM
Unit type of package 2
S03
Number of units in package 2
6
Package 2 height
30.0000 CENTIMETER
Package 2 width
30.0000 CENTIMETER
Package 2 length
40.0000 CENTIMETER
Package 2 weight
5.2910 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
96
Package 3 height
75.0000 CENTIMETER
Package 3 width
60.0000 CENTIMETER
Package 3 length
80.0000 CENTIMETER
Package 3 weight
76.8000 KILOGRAM
