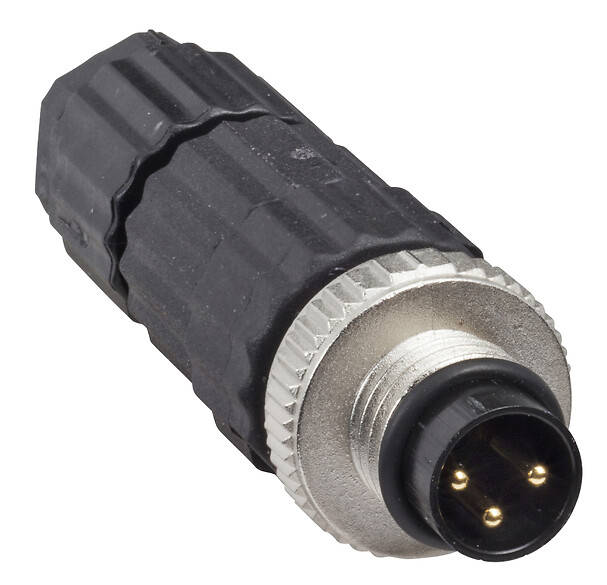

XZCC8MDM30V
Male, M8, 3 pin, straight connector, cable gland M9.5 x 1
Commercialised
Expand all
Datasheet
Accessory / separate part type
Connector
Accessory / separate part category
Cabling accessories
Enclosure material
Plastic
Electrical connection
Straight male connector M8, 3 pins
Collar material
Metal
Cable connection
-
Status LED
Without
IP degree of protection
IP67
[Ue] rated operational voltage
60 V AC, 75 V DC
Cable connector fixing
Screw-on
Cable gland type
M9.5
Insulating resistance
1 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
440 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Cable gland : M9.5 x 1
Connections and Schemes
Expand all
Documents & Downloads
Document name
Date
Size
2024-06-28
4263041
Document name
Date
Size
2025-05-16
544270
2025-02-28
439601
