XZCE13M785M

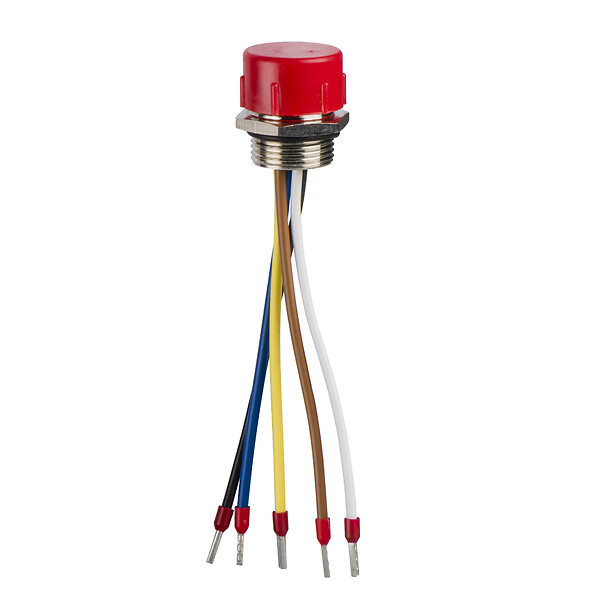

Adaptor, metal, tapped hole Pg 13.5, for male connector, 7/8'' 16UN, 5 wire
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Accessory / separate part designation
5-wire connector adaptor
Accessory / separate part category
Cabling accessories
Accessory / separate part type
Connector adaptor
Cable composition
5 x 1 mm²
Electrical connection
-
Insulation resistance
> 1000000000 Ohm
Resistance across terminals
5000 MILLIOHM
[Ue] rated operational voltage
250 V AC, 300 V DC
IP degree of protection
IP67
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 width
15 CENTIMETER
Package 1 length
4.5 CENTIMETER
Package 1 weight
47 GRAM
Unit type of package 2
S02
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.905 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Pg 13.5 cable gland
Connections and Schemes
- BN : Brown
- BK : Black
- BU : Blue
- Y/G : Yellow / Green
- WH : White
