XZCP1041L10

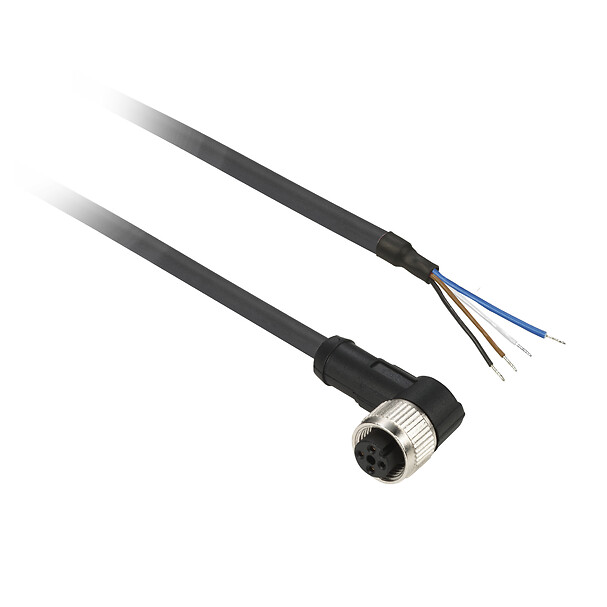

Pre-wired connector XZ, elbowed female, M8, 4-pin, PUR cable, 10 m
COMMERCIALISED
Expand all
Datasheet
ETIM classification
ETIM 9 - EC001855 - Sensor-actuator patch cord
Collar material
Metal
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Product certifications
cULus
Indivisible sale quantity
1
Electrical connection
Elbowed female connector M8, 4 pins
Cable length
10 m
Cable composition
4 x 0.34 mm²
Wire insulation material
PUR
[Ue] rated operational voltage
60 V AC, 75 V DC
[In] rated current
4 A
Contact resistance
5000 µΩ
Cable outer diameter
5.2 mm
Insulating resistance
1 GΩ
Product weight
0.36 kg
IP degree of protection
IP65
IP67
IP69K
IP67
IP69K
Ambient air temperature for operation
-40-80 °C static, -5-80 °C flexing
Ambient air temperature for operation
-40…80 °C
Ambient air temperature for storage
-40…80 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
CZ (Czech Republic)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916068397
Package 1 height
5.5 cm
Package 1 width
19.3 cm
Package 1 length
19.4 cm
Package 1 weight
0.36 kg
Unit type of package 2
S02
Number of units in package 2
10
New Package 2 GTIN 14
13666916068394
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.272 kg
New Package 3 GTIN 14
23666916068391
Expand all
Technical Drawings
Dimensions
- L : Length of cable
Connections and Schemes
Connector
- BN : Brown
- BK : Black
- BU : Blue
- WH : White
