XZCP1264L25

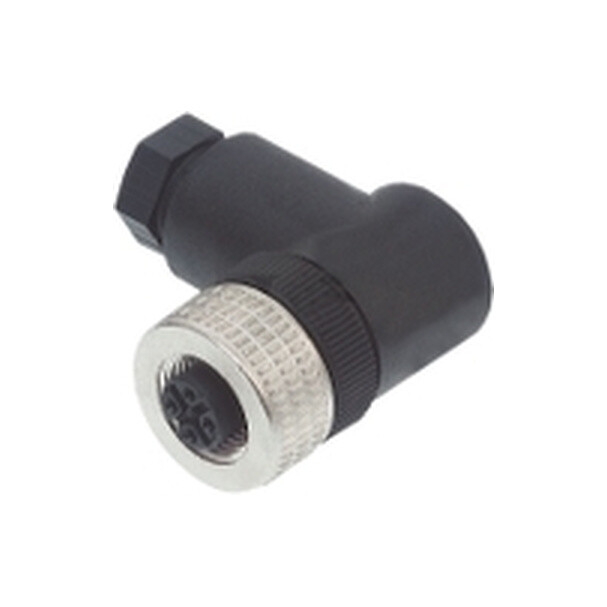

Safety light curtain accessory XUSL, M12 female 90° connector, 5-pin, 25 m pre-wired, PUR

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Cabling components
ETIM classification
ETIM 9 - EC001855 - Sensor-actuator patch cord
Collar material
Metal
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Status LED
Without
Product certifications
cULus
Indivisible sale quantity
1
Electrical connection
Elbowed female connector M12, 5 pins (included earth pin)
Cable length
25 m
Cable composition
5 x 0.34 mm²
Wire insulation material
PUR
[Ue] rated operational voltage
30 V AC, 36 V DC
[In] rated current
4 A
Contact resistance
5000 µΩ
Cable connector fixing
Screw-on
Cable outer diameter
5.9 mm
Insulating resistance
1 GΩ
IP degree of protection
IP65
IP67
IP69K
Ambient air temperature for operation
-40-80 °C static, -5-80 °C flexing
Ambient air temperature for operation
-40…80 °C
Ambient air temperature for storage
-40…80 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
CZ (Czech Republic)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916068014
Package 1 height
5 cm
Package 1 width
20 cm
Package 1 length
20 cm
Package 1 weight
1.25 kg
Unit type of package 2
S02
Number of units in package 2
5
New Package 2 GTIN 14
13666916068011
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
4.663 kg
New Package 3 GTIN 14
23666916068018
