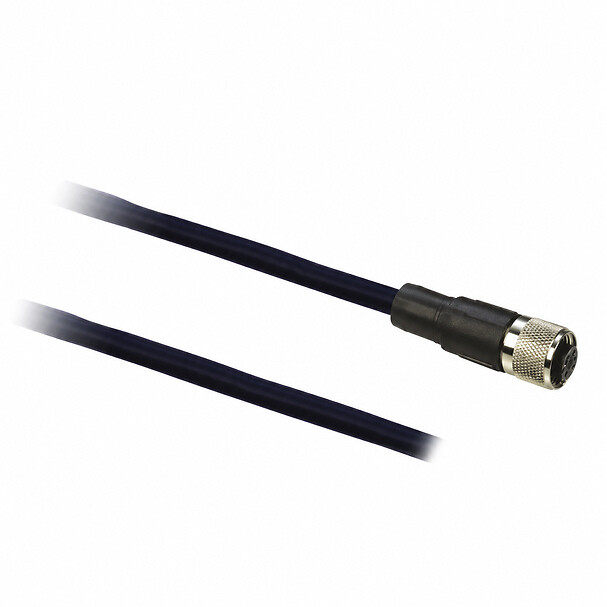

XZCP1670L2
Pre wired connectors XZ, straight female, 7/8"16 UN, 3 pins, cable PUR 2 m
Commercialised
Expand all
Datasheet
Accessory / separate part type
Pre-wired connectors
Accessory / separate part category
Cabling accessory
Electrical connection
Straight female connector 7/8"16 UN, 3 pins
Cable composition
3 x 0.5 mm²
Collar material
Metal
IP degree of protection
IP67
Product certifications
cULus
[Ue] rated operational voltage
250 V AC
Wire insulation material
PUR
Insulating resistance
1 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.736 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- L : Length of cable
Connections and Schemes
Connector
- GN : Green
- BK : Black
- BK/WH : Black / White
