XZCP29P11L25

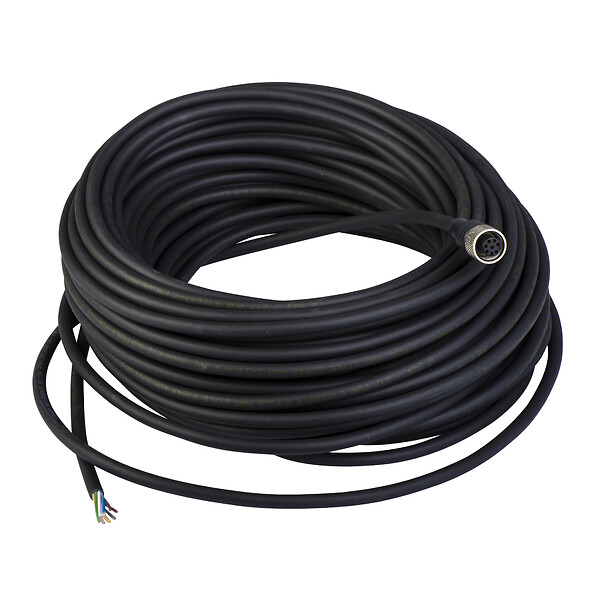

Safety light curtain accessory XUSL, pre-wired connectors XZ, straight female, M12, 8 pins, cable PUR 25 m

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Cabling components
ETIM classification
ETIM 9 - EC001855 - Sensor-actuator patch cord
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Indivisible sale quantity
1
Electrical connection
Straight female connector M12, 8 pins
Cable length
25 m
Wire insulation material
PUR
[Ue] rated operational voltage
250 V AC, 300 V DC
[In] rated current
2 A
Contact resistance
5000 µΩ
Cable outer diameter
5.2 mm
Insulating resistance
1 GΩ
Ambient air temperature for operation
-
Ambient air temperature for storage
-35…100 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
CZ (Czech Republic)
IN (India)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916067536
Package 1 height
7.7 cm
Package 1 width
22.3 cm
Package 1 length
22.7 cm
Package 1 weight
1.25 kg
Unit type of package 2
S02
Number of units in package 2
3
New Package 2 GTIN 14
13666916067533
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.842 kg
New Package 3 GTIN 14
23666916067530

Expand all

Technical Drawings

Connections and Schemes

Connectors

epds
  • GY : Grey
  • PK : Pink
  • BU : Blue
  • WH : White
  • RD : Red
  • BN : Brown
  • GN : Green
  • YE : Yellow
