XZCPV1164L10

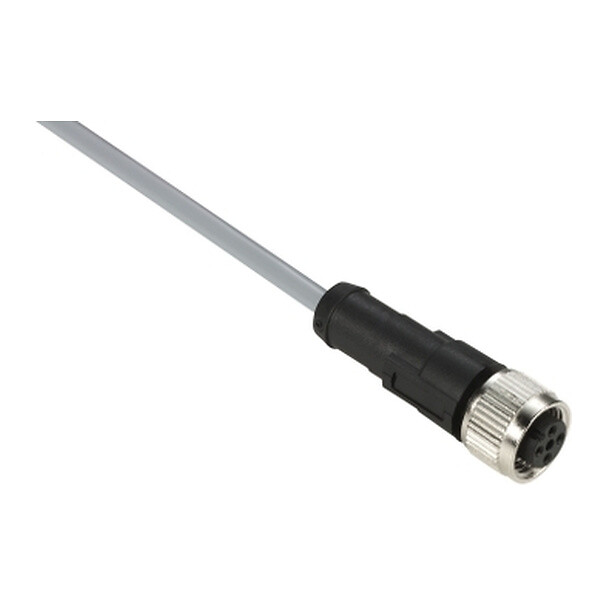

Pre wired connectors XZ, straight female, M12, 5 pins, cable PVC 10 m
COMMERCIALISED
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Series name
General purpose
Electrical connection
Straight female connector M12, 5 pins
Cable connector fixing
Screw-on
Collar material
Metal
Status LED
Without
Cable composition
5 x 0.25 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
60 V AC, 75 V DC
Insulating resistance
1 GIGAOHM
IP degree of protection
IP65
IP67
IP67
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 CENTIMETER
Package 1 width
20 CENTIMETER
Package 1 length
20 CENTIMETER
Package 1 weight
0.522 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.535 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
30 CENTIMETER
Package 3 width
4 CENTIMETER
Package 3 length
24 CENTIMETER
Package 3 weight
0.532 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- L : Length of cable
Connections and Schemes
Connectors
- BU : Blue
- BN : Brown
- BK : Black
- Y/G : Yellow / Green
- BK/WH : Black / White
