Home Products XZCPV11V12L2

XZCPV11V12L2

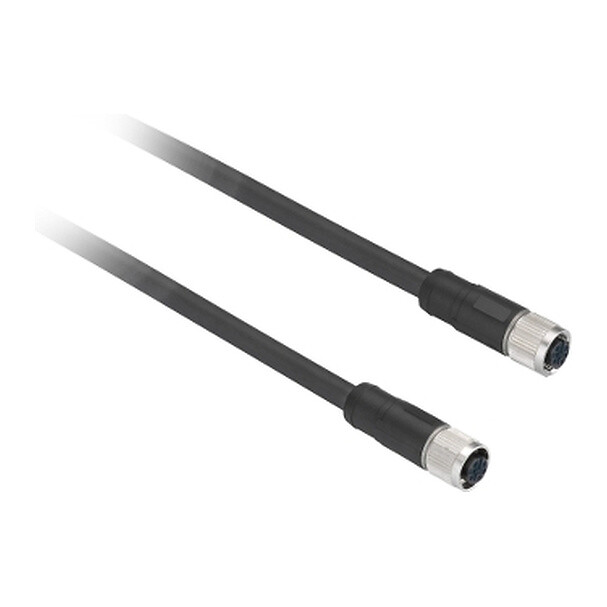

Pre wired connectors XZ, straight female, M12, 5 pins, cable PVC 2 m

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Accessory / separate part type
Pre-wired connectors
Accessory / separate part category
Cabling accessory
Electrical connection
Straight female connector M12, 5 pins
Cable composition
5 x 0.34 mm²
Collar material
Metal
IP degree of protection
IP65
IP67
Product certifications
cULus
[Ue] rated operational voltage
60 V AC, 75 V DC
Wire insulation material
PVC
Insulating resistance
1 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.776 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

epds
  • L : Length of cable

Connections and Schemes

Connectors

epds
  • BU : Blue
  • BN : Brown
  • BK : Black
  • GY : Grey
  • BK/WH : Black / White
