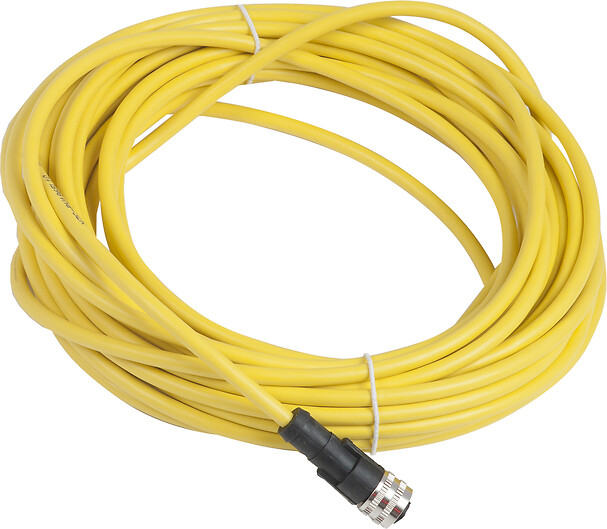

XZCPV1865L5
Pre wired connectors XZ, straight female, 1/2"20 UNF, 3 pins, cable PVC 5 m
COMMERCIALISED
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Electrical connection
Straight female connector 1/2"20 UNF, 3 pins
Collar material
Metal
Cable composition
3 x 0.34 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
250 V AC, 300 V DC
Insulating resistance
1 GIGAOHM
IP degree of protection
IP65
IP67
IP67
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
0.194 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.209 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- L : Length of cable
- (1) 1/2”-20UNF
Connections and Schemes
Connectors
- GN : Green
- RD/WH : Red / White
- RD/BK : Red / Black
