XZCR1523062K1

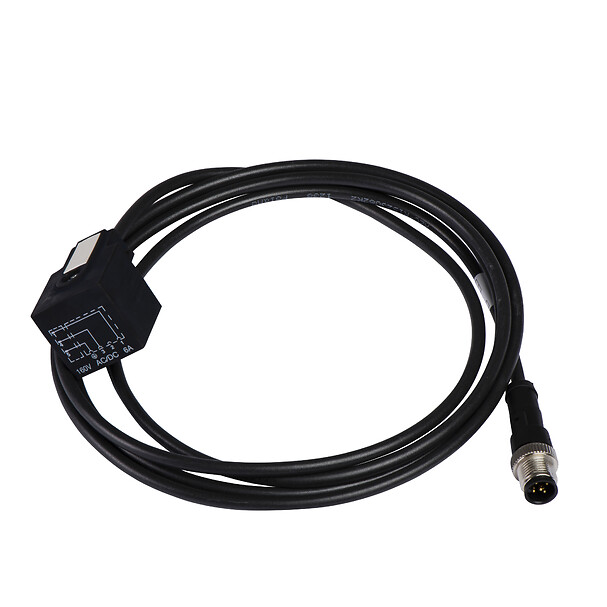

Jumper cable XZ, male straight M12 3-pin, female elbowed DIN 43650 A, PUR cable, 1 m
COMMERCIALISED
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
connection accessory
connection accessory
Accessory / separate part type
Jumper cable
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 width
20 CENTIMETER
Package 1 length
20 CENTIMETER
Package 1 weight
0.08 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.932 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

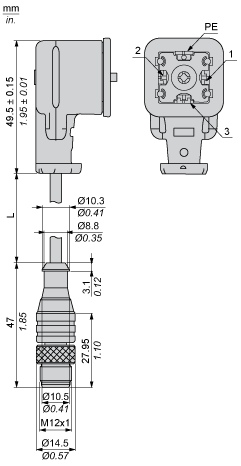

Dimensions
- L : Length of cable
Connections and Schemes
