XZCRA151164D5

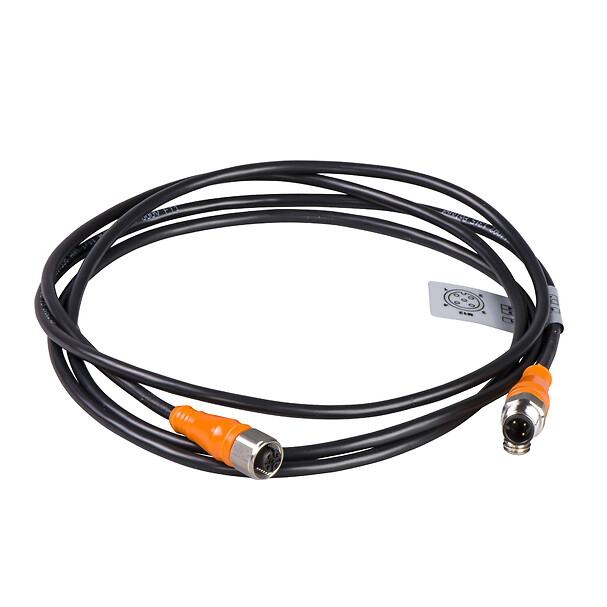

Pre-wired connector XZ, straight female, M12, 5-pin, PVC cable, 5 m, stainless steel
COMMERCIALISED
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Jumper cable
Jumper cable end 1
M12 male 5 pins straight connector with screw-on and clip-on
Jumper cable end 2
M12 female 5 pins straight connector with screw-on and clip-on
Collar material
Metal
Cable composition
5 x 0.34 mm²
[Ue] rated operational voltage
250 V AC, 300 V DC
Insulation resistance
1000 MOhm
Resistance across terminals
5000 MILLIOHM
IP degree of protection
IP69K
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
18 CENTIMETER
Package 1 length
18 CENTIMETER
Package 1 weight
0.178 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.885 KILOGRAM
Indivisible sale quantity
1
Expand all
Technical Drawings
Dimensions
- L : Length of cable
