XZCRV1511041C2

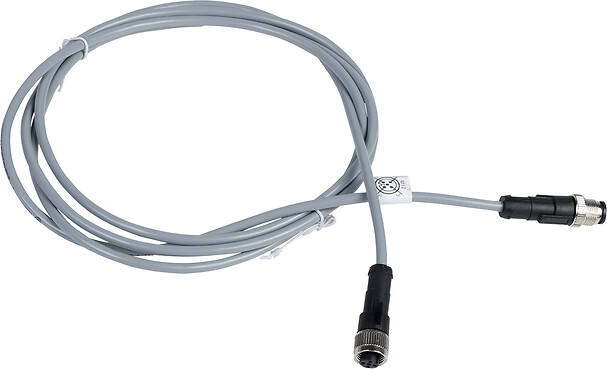

Jumper cable XZ, male straight M12, female straight M12, 4-pin, PVC cable, 2 m
COMMERCIALISED
Expand all
Datasheet
ETIM classification
ETIM 9 - EC001855 - Sensor-actuator patch cord
Collar material
Metal
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Jumper cable
Jumper cable end 1
M12 male 4 pins straight connector with screw-on
Jumper cable end 2
M12 female 4 pins straight connector with screw-on
Product certifications
cULus
Indivisible sale quantity
1
Cable length
2 m
Cable composition
4 x 0.25 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
250 V AC, 300 V DC
Insulation resistance
1000 MOhm
[In] rated current
3 A
Resistance across terminals
5000 mΩ
Cable outer diameter
4.6 mm
Product weight
0.11 kg
IP degree of protection
IP65
IP67
IP67
Ambient air temperature for operation
-25-80 °C static
Ambient air temperature for operation
-25…80 °C
Ambient air temperature for storage
-25…80 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
CZ (Czech Republic)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916069059
Package 1 height
1.5 cm
Package 1 width
14.5 cm
Package 1 length
16 cm
Package 1 weight
0.11 kg
Unit type of package 2
S02
Number of units in package 2
40
New Package 2 GTIN 14
13666916069056
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.929 kg
New Package 3 GTIN 14
23666916069053
Expand all
Technical Drawings
Dimensions
- L : Length of cable
