ZC1AZ14
Limit switch contact block, Limit switches XC Standard, 2NC, simultaneous
Commercialised
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch contact block
Device short name
ZC1A
Product compatibility
XC1AC14
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts type and composition
2 NC
Contact operation
Slow-break, simultaneous
Contacts material
Silver plated contacts
Positive opening
Without
Contacts insulation form
Za
Resistance across terminals
8 mOhm conforming to IEC 60255-7 category 3
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.4 CENTIMETER
Package 1 width
5.8 CENTIMETER
Package 1 length
7.6 CENTIMETER
Unit type of package 2
S02
Package 1 weight
48 GRAM
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.793 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Connection and Schema
NC + NC simultaneous, slow-break
Mounting
Screw mounting
Expand all
Documents & Downloads
Document name
Date
Size
2017-09-29
510309
Expand all
Related products & accessories
XC1AC141

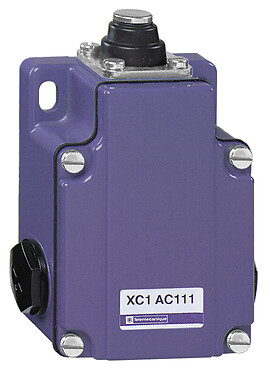

Limit switch, Limit switches XC Standard, XC1AC, end plunger, 2NC, simultaneous
XC1AC145

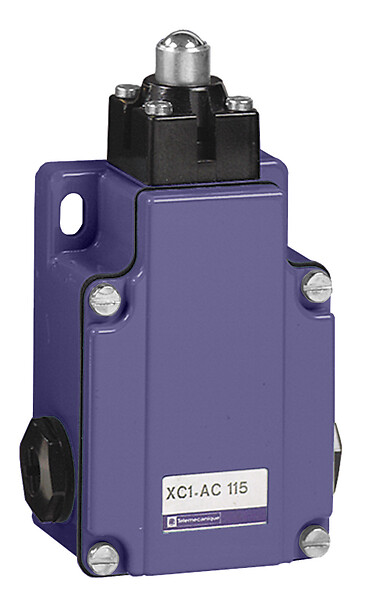

Limit switch, Limit switches XC Standard, XC1AC, end ball bearing plunger, 2NC, simultaneous
XC1AC146

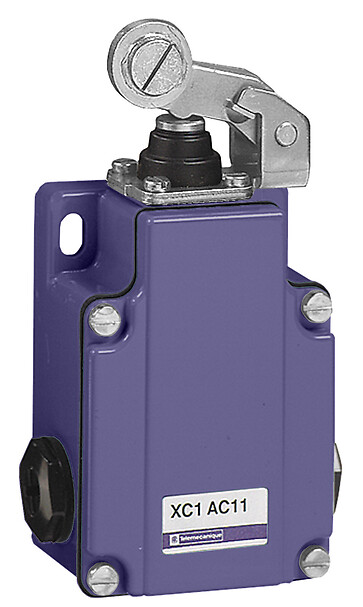

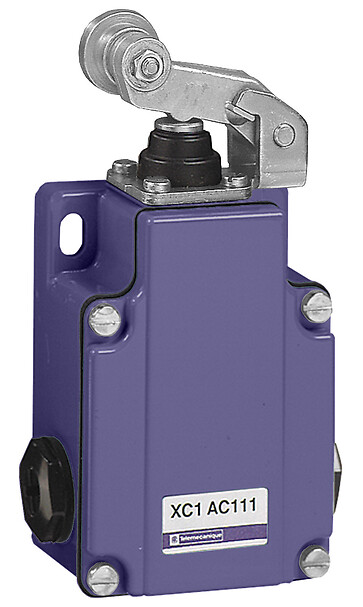

Limit switch, Limit switches XC Standard, XC1AC, roller lever, 2NC, simultaneous
XC1AC147

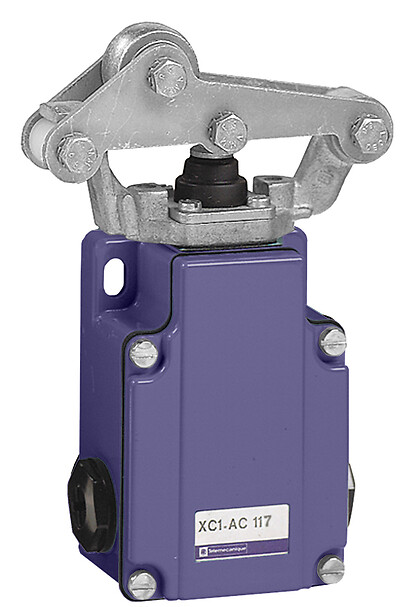

Limit switch, Limit switches XC Standard, XC1AC, reinforced roller lever, 2NC, simultaneous
