ZC2JC13

Limit switch body, Limit switches XC Standard, ZC2J, fixed, without display, 1C/O, corrosive

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch body
Device short name
ZC2J
Body type
Fixed
Product compatibility
XC2J
Body material
Metal
Cable entry
1 tapped entry for Pg 13.5 cable gland (included)
Contacts type and composition
1 C/O
Contact operation
Snap action
Contacts material
Silver plated contacts
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Positive opening
Without
Resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(13-14)NO
IP degree of protection
IP65
IK degree of protection
IK08
Environmental characteristic
Corrosive
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.289 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Related products & accessories

ZC2JE015

Limit switch head, Limit switches XC Standard, ZC2J, without lever left and right actuation, +120 °C

ZC2JE025

Limit switch head, Limit switches XC Standard, ZC2J, without lever actuation from right, +120 °C

ZC2JE625

Limit switch head, Limit switches XC Standard, ZC2J, steel roller plunger, +120 °C

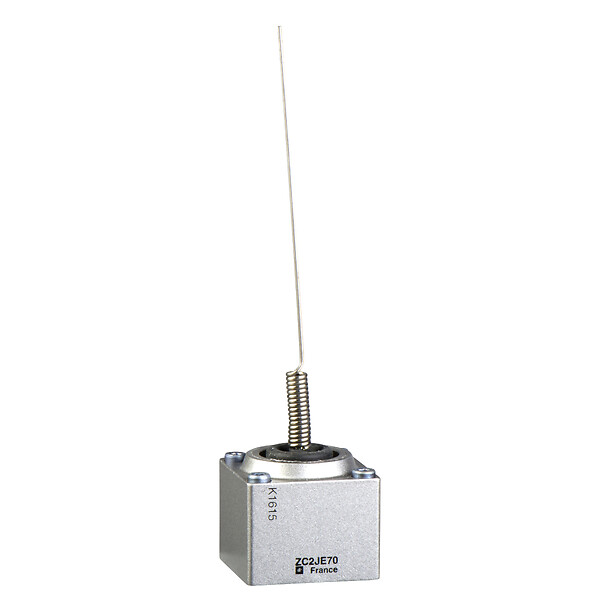

ZC2JE705
