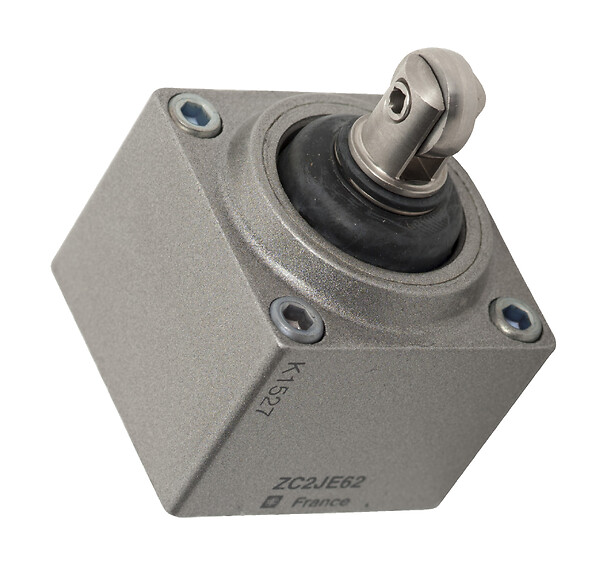

ZC2JE626
Limit switch head for XC2J, steel roller plunger, 40 °C
COMMERCIALISED
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch head
Device short name
ZC2J
Device presentation
Basic element
ETIM classification
ETIM 9 - EC001483 - Drive head for position switches/hinge switches
Head type
Plunger head
Head material
Metal
Movement of operating head
Linear
Type of operator
Roller plunger spring return metal
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Product compatibility
XC2J
Indivisible sale quantity
1
Positive opening
Without
Product weight
0.2 kg
Environmental characteristic
Low temperature
Ambient air temperature for operation
-40…70 °C
Ambient air temperature for storage
-40…70 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916039885
Package 1 height
0.42 cm
Package 1 width
0.42 cm
Package 1 length
0.95 cm
Package 1 weight
0.2 kg
Unit type of package 2
CAR
Number of units in package 2
1
New Package 2 GTIN 14
13666916039882
Package 2 height
0.9 cm
Package 2 width
0.4 cm
Package 2 length
0.4 cm
Package 2 weight
0.2 kg
New Package 3 GTIN 14
23666916039889
