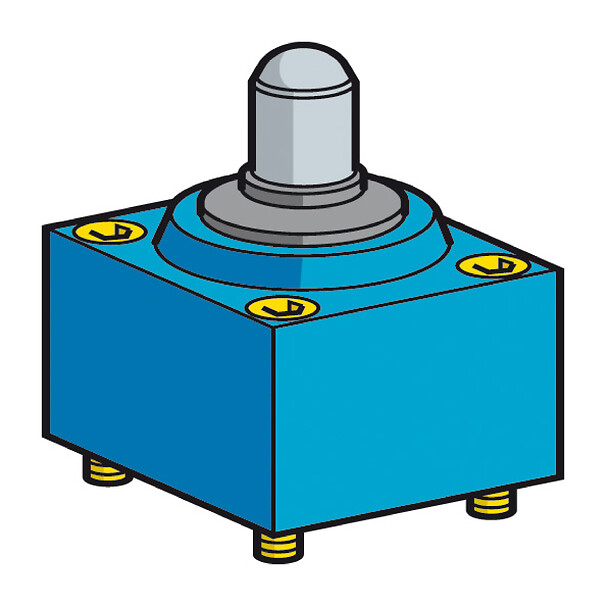

ZC2JE666
Limit switch head for XC2J, steel ball bearing plunger, 40 °C
END OF COMMERCIALISATION End of commercialization date : December 08th 2020 End of service date : December 08th 2020
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch head
Device short name
ZC2J
Device presentation
Basic element
ETIM classification
ETIM 9 - EC001483 - Drive head for position switches/hinge switches
Head type
Plunger head
Head material
Metal
Movement of operating head
Linear
Type of operator
Roller plunger spring return metal (ball bearing mounted)
Switch actuation
By 30° cam
Type of approach
Multi-directional approach
Product compatibility
XC2J
Positive opening
Without
Product weight
0.205 kg
Environmental characteristic
Low temperature
Ambient air temperature for operation
-40…70 °C
Ambient air temperature for storage
-40…70 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.42 cm
Package 1 width
0.42 cm
Package 1 length
0.95 cm
Package 1 weight
205 g
