ZCE06

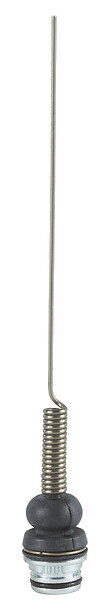

Limit switch head, Limit switches XC Standard, ZCE, cat's whisker with nitrile boot

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH HEAD
Device short name
ZCE
Head type
MULTI DIRECTIONAL HEAD
Product compatibility
XCKD
XCKP
XCKT
XCMD
Movement of operating head
MULTI DIRECTIONAL
Type of operator
Cat's whisker spring return metal (with nitrile boot)
Type of approach
Multi-directional approach
Environmental characteristic
STANDARD
Unit type of package 1
PCE
Number of units in package 1
1
