ZCE07

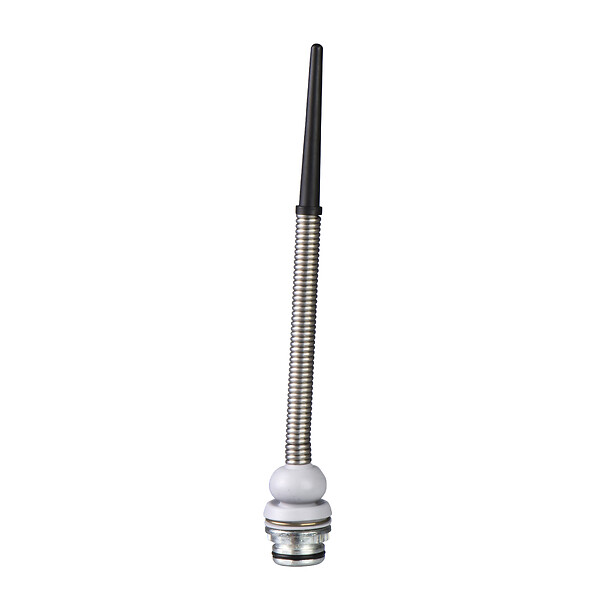

Limit switch head, Limit switches XC Standard, ZCE, spring rod lever termoplastic end nitrile boot

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch head
Device short name
ZCE
Head type
Multi-directional head
Product compatibility
XCKD
XCKP
XCKT
XCMD
Movement of operating head
Multi-directional
Type of operator
Spring rod spring return metal (with nitrile boot and thermoplastic end)
Type of approach
Multi-directional approach
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Indivisible sale quantity
1

Expand all

Documents & Downloads

Document name
Date
Size
Head with spring rod plunger with thermoplastic end (dxf)

2005-01-13T00:00:00.000Z

143037

Head with spring rod plunger with thermoplastic end (wmf)

2005-01-13

16688

Head with spring rod plunger with thermoplastic end (eps)

2005-01-13

46005

Head with spring rod plunger with thermoplastic end (dwg)

2005-01-13T00:00:00.000Z

52861

Head with spring rod plunger with thermoplastic end (dwf)

2005-01-13

7850

Document name
Date
Size
TESEDEC0000EN_REACh_Declaration_for_ZCE07 (pdf)

2026-04-29

109500

Document name
Date
Size
TESEDEC0000EN_RoHS_Declaration_for_ZCE07 (pdf)

2026-04-29

108783

Document name
Date
Size
XCMN Plastic Limit Switches Installation Instructions (pdf)

2024-01-31

576672
