ZCE10

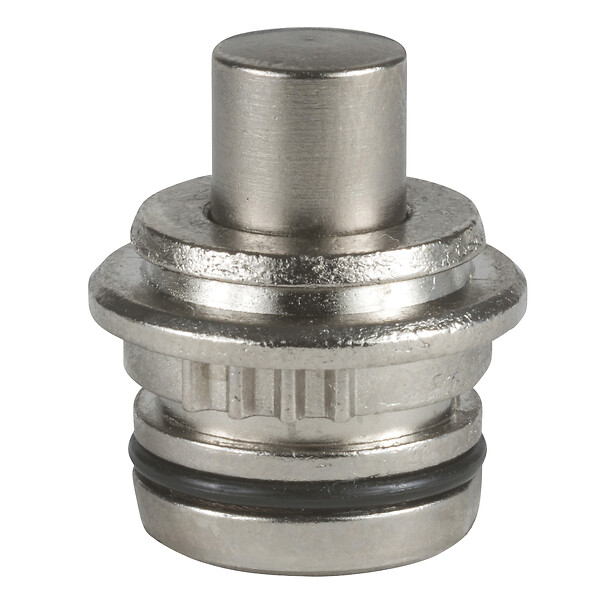

Limit switch head, Limit switches XC Standard, ZCE, metal end plunger

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH HEAD
Device short name
ZCE
Head type
PLUNGER HEAD
Product compatibility
XCKD
XCKP
XCKT
XCMD
Movement of operating head
LINEAR
Type of operator
End plunger spring return metal
Type of approach
Vertical approach, 1 direction
Environmental characteristic
STANDARD
Unit type of package 1
PCE
Number of units in package 1
1

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for XC Standard range - Limit switches (pdf)

2024-07-15

68162797

Catalogue Limit switches XC Standard range English 07/2023 (pdf)

2023-07-10

65298117

Document name
Date
Size
Head with metal end plunger (dwg)

2005-01-13

12218

Head with metal end plunger (dwf)

2005-01-13

2243

Head with metal end plunger (dxf)

2005-01-13

25691

Head with metal end plunger (wmf)

2005-01-13

4272

Head with metal end plunger (eps)

2005-01-13

7688

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dxf)

2024-07-18

113863

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dxf)

2024-07-18

13840

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dwg)

2024-07-18

19058

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dwg)

2024-07-18

21142

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dwg)

2024-07-18

21179

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dwg)

2024-07-18

21400

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dwg)

2024-07-18

21469

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dwg)

2024-07-18

22072

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dxf)

2024-07-18

23313

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dxf)

2024-07-18

23315

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dxf)

2024-07-18

24957

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dxf)

2024-07-18

25903

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dxf)

2024-07-18

26414

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (stp)

2024-07-18

326648

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (pdf)

2024-07-18

43669

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, metal end plunger - 3D CAD (dwg)

2024-07-18

53120
