ZCE21

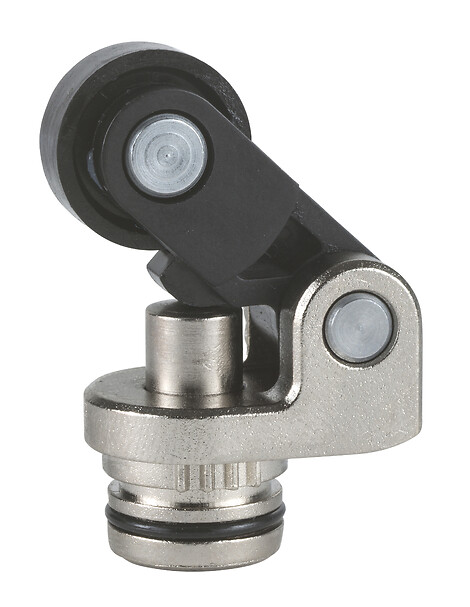

Limit switch head, Limit switches XC Standard, ZCE, roller lever plunger horizontal direction

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH HEAD
Device short name
ZCE
Head type
PLUNGER HEAD
Product compatibility
XCKD
XCKP
XCKT
XCMD
Movement of operating head
LINEAR
Type of operator
Roller lever plunger spring return thermoplastic
Type of approach
Lateral approach, 1 direction
Environmental characteristic
STANDARD
Unit type of package 1
PCE
Number of units in package 1
1

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for XC Standard range - Limit switches (pdf)

2024-07-15

68162797

Catalogue Limit switches XC Standard range English 07/2023 (pdf)

2023-07-10

65298117

Telemecanique Sensors The essential guide of Detection (pdf)

2019-11-15

25459359

Document name
Date
Size
Head with thermoplastic roller lever plunger horizontal actuation (eps)

2005-01-13

11908

Head with thermoplastic roller lever plunger horizontal actuation (dwg)

2005-01-13

14507

Head with thermoplastic roller lever plunger horizontal actuation (dwf)

2005-01-13

2992

Head with thermoplastic roller lever plunger horizontal actuation (dxf)

2005-01-13

31171

Head with thermoplastic roller lever plunger horizontal actuation (wmf)

2005-01-13

6666

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dxf)

2024-07-18

155607

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dwg)

2024-07-18

21721

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dwg)

2024-07-18

22648

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dwg)

2024-07-18

22907

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dwg)

2024-07-18

23093

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dwg)

2024-07-18

23259

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dwg)

2024-07-18

23544

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dxf)

2024-07-18

24747

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dxf)

2024-07-18

31877

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dxf)

2024-07-18

32478

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dxf)

2024-07-18

32665

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dxf)

2024-07-18

33026

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dxf)

2024-07-18

36057

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (dwg)

2024-07-18

59870

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (pdf)

2024-07-18

61184

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, thermoplastic roller lever plunger horizontal actuation - 3D CAD (stp)

2024-07-18

628100
