ZCE24

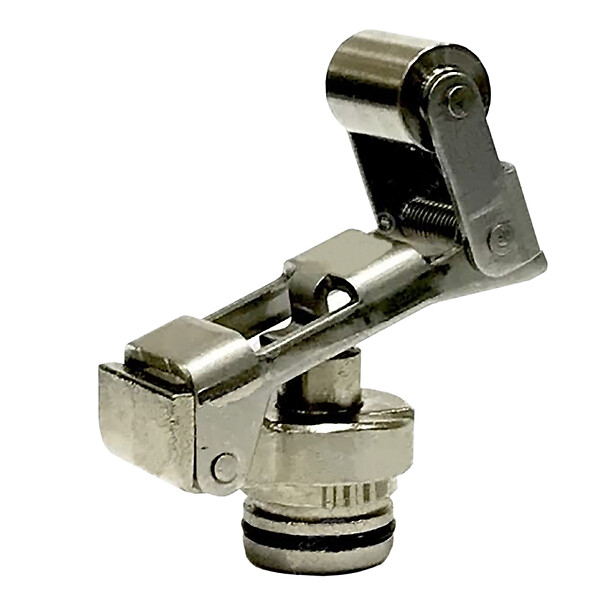

Limit switch head, Limit switches XC Standard, ZCE, retractable roller lever

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH HEAD
Device short name
ZCE
Head type
PLUNGER HEAD
Product compatibility
XCKD
XCKP
XCKT
XCMD
Movement of operating head
LINEAR
Type of operator
Roller lever plunger spring return metal (retractable)
Type of approach
Lateral approach, 1 direction
Environmental characteristic
STANDARD
Unit type of package 1
PCE
Number of units in package 1
1

Expand all

Documents & Downloads

Document name
Date
Size
Catalogue for XC Standard range - Limit switches (pdf)

2024-07-15

68162797

Catalogue Limit switches XC Standard range English 07/2023 (pdf)

2023-07-10

65298117

Telemecanique Sensors The essential guide of Detection (pdf)

2019-11-15

25459359

Document name
Date
Size
Head with retractable steel roller lever plunger (eps)

2005-01-13

19099

Head with retractable steel roller lever plunger (dwg)

2005-01-13

27437

Head with retractable steel roller lever plunger (dwf)

2005-01-13

4162

Head with retractable steel roller lever plunger (dxf)

2005-01-13

68323

Head with retractable steel roller lever plunger (wmf)

2005-01-13

8602

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dxf)

2024-07-18

179954

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dwg)

2024-07-18

23736

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dwg)

2024-07-18

23897

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dwg)

2024-07-18

26651

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dwg)

2024-07-18

28181

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dwg)

2024-07-18

28271

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dwg)

2024-07-18

28892

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dxf)

2024-07-18

35257

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dxf)

2024-07-18

35668

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dxf)

2024-07-18

51432

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dxf)

2024-07-18

55287

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dxf)

2024-07-18

59347

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dxf)

2024-07-18

59501

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (stp)

2024-07-18

596980

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (dwg)

2024-07-18

66559

Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly head, retractable steel roller lever plunger - 3D CAD (pdf)

2024-07-18

81806

Expand all

Related products & accessoires

ZCD21

Limit switch body, Limit switches XC Standard, ZCD, compact, 1NC+1 NO, snap action

ZCD37

Limit switch body, Limit switches XC Standard, ZCD, compact, 2NC+1 NO, slow break

ZCMD39L2

Limit switch body, Limit switches XC Standard, ZCMD, 2NC+1 NO, silver, snap action, connection, 2 m

ZCMD41L5

Limit switch body, Limit switches XC Standard, ZCMD, 2NC+2 NO, silver, snap action, connection, 5 m

ZCMD61C12

Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, gold, snap action, connection, M12

ZCMD69C12

Limit switch body, Limit switches XC Standard, ZCMD, 2NC, gold, snap action, connection, M12

ZCP25

Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, slow break

ZCT26P16

Limit switch body, Limit switches XC Standard, ZCT, compact, 1NC+1 NO, slow break, M16

ZCT28N12

Limit switch body, Limit switches XC Standard, ZCT, compact, 2 NO, slow break, 1/2"NPT

ZCT28P16

Limit switch body, Limit switches XC Standard, ZCT, compact, 2 NO, slow break, M16
