ZCKD31

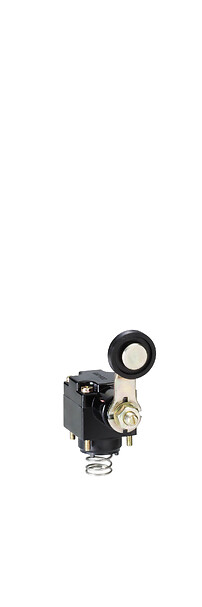

Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever
COMMERCIALISED
Expand all
Datasheet
Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH HEAD
Device short name
ZCKD
Head type
ROTARY HEAD
Product compatibility
XCKS
Movement of operating head
ROTARY
Type of operator
Roller lever spring return thermoplastic
Type of approach
Lateral approach, 2 directions
Switch actuation
BY 30 D CAM
Positive opening
WITH
Head material
PLASTIC
Environmental characteristic
STANDARD
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.5000 CENTIMETER
Package 1 width
7.8000 CENTIMETER
Package 1 length
3.4000 CENTIMETER
Package 1 weight
86.0000 GRAM
Unit type of package 2
S01
Number of units in package 2
28
Package 2 height
15.0000 CENTIMETER
Package 2 width
15.0000 CENTIMETER
Package 2 length
40.0000 CENTIMETER
Package 2 weight
2.6930 KILOGRAM
For all Reach Rohs enquiries contact us at
