ZCKD49

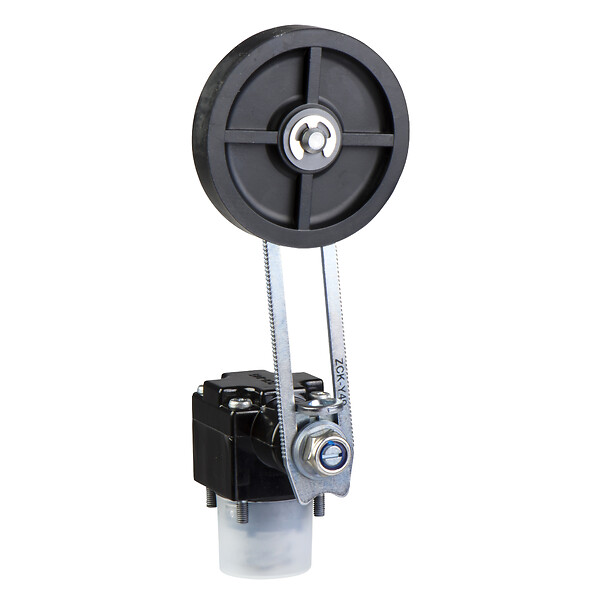

Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever Ø 50 mm variable length
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch head
Device short name
ZCKD
Head type
Rotary head
Product compatibility
XCKS
Associated body
ZCKSD39H29
ZCKS1
ZCKS2
ZCKSD39
ZCKSD31
ZCKS8H29
ZCKS7
ZCKS2H29
ZCKS7H29
ZCKSD35H29
ZCKS8
ZCKS9
ZCKS6
ZCKS6H29
ZCKSD37H29
ZCKSD37
ZCKS1H29
ZCKS5H29
ZCKS5
ZCKS9H29
ZCKSD35
ZCKSD31H29
ZCKS1
ZCKS2
ZCKSD39
ZCKSD31
ZCKS8H29
ZCKS7
ZCKS2H29
ZCKS7H29
ZCKSD35H29
ZCKS8
ZCKS9
ZCKS6
ZCKS6H29
ZCKSD37H29
ZCKSD37
ZCKS1H29
ZCKS5H29
ZCKS5
ZCKS9H29
ZCKSD35
ZCKSD31H29
Movement of operating head
Rotary
Type of operator
Roller lever spring return elastomer (adjustable and roller diameter 50 mm)
Type of approach
Lateral approach, 2 directions
Switch actuation
By 30° cam
Positive opening
Without
Head material
Plastic
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Environmental characteristic
Standard environment
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.300 cm
Package 1 Width
9.000 cm
Package 1 Length
15.000 cm
Package 1 Weight
125.000 g
Unit Type of Package 2
S02
Number of Units in Package 2
11
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
1.681 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
RoHS exemption information
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
