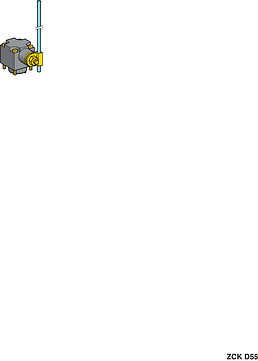

ZCKD55
Limit switch head, Limit switches XC Standard, ZCKD, glass fiber round rod lever 3 mm L= 125 mm
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch head
Device short name
ZCKD
Head type
Rotary head
Product compatibility
XCKS
Associated body
ZCKS8
ZCKS7
ZCKS6H29
ZCKS9H29
ZCKSD35H29
ZCKS1
ZCKSD31H29
ZCKSD35
ZCKS7H29
ZCKSD37
ZCKS2H29
ZCKSD39H29
ZCKSD31
ZCKS8H29
ZCKSD37H29
ZCKS2
ZCKS5H29
ZCKS9
ZCKS5
ZCKS1H29
ZCKS6
ZCKSD39
ZCKS7
ZCKS6H29
ZCKS9H29
ZCKSD35H29
ZCKS1
ZCKSD31H29
ZCKSD35
ZCKS7H29
ZCKSD37
ZCKS2H29
ZCKSD39H29
ZCKSD31
ZCKS8H29
ZCKSD37H29
ZCKS2
ZCKS5H29
ZCKS9
ZCKS5
ZCKS1H29
ZCKS6
ZCKSD39
Movement of operating head
Rotary
Type of operator
Rod lever spring return glass fiber (round rod 3 mm, L = 125 mm)
Type of approach
Lateral approach, 2 directions
Switch actuation
By any moving part
Positive opening
Without
Head material
Plastic
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Environmental characteristic
Standard environment
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.200 cm
Package 1 Width
6.200 cm
Package 1 Length
21.600 cm
Package 1 Weight
92.000 g
Unit Type of Package 2
S02
Number of Units in Package 2
22
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
2.355 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
RoHS exemption information
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
