ZCKD59

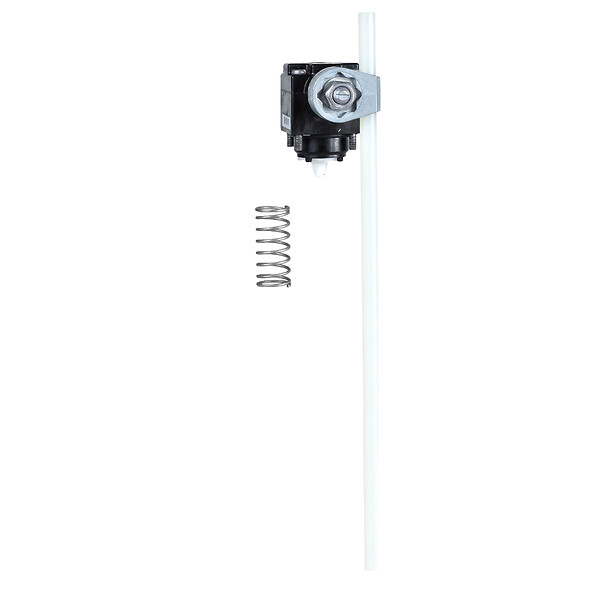

Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic round rod lever 6 mm L = 200 mm
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch head
Device short name
ZCKD
Head type
Rotary head
Product compatibility
XCKL
XCKM
XCKS
XCKM
XCKS
Movement of operating head
Rotary
Type of operator
Rod lever spring return glass fiber (round rod 6 mm, L = 200 mm)
Type of approach
Lateral approach, 2 directions
Switch actuation
By any moving part
Positive opening
Without
Head material
Plastic
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
18
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
8.916 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
