ZCKJ09

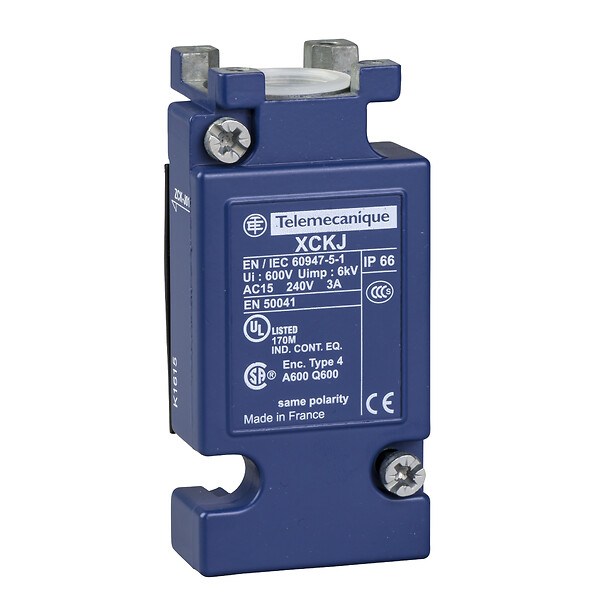

Limit switch body, Limit switches XC Standard, standard format, for XCKJ
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch body
Device short name
ZCKJ
Electrical circuit type
Indicator light module 2 LED DC, 24 V (20...30 V) service life: 100000 h with reverse polarity protection
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(13-14)NO
IP degree of protection
IP66
IK degree of protection
IK07
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
2025-05-19
469500
2025-05-21
476351
