ZCMD21L08U78

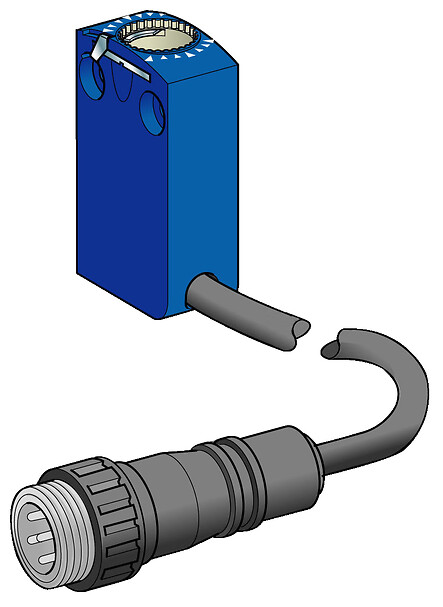

limit switch body ZCMD - 1NC+1NO - silver - snap action - connection - 7/8" 0.8m

END OF COMMERCIALISATION End of commercialization date : January 04th 2022 End of service date : January 04th 2022

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch body
Device short name
ZCMD
Design
Miniature
Body type
Fixed
Body material
Zamak
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Product compatibility
XCMD
Electrical connection
Remote male connector 7/8", 5 pins
Contacts insulation form
Zb
Wire insulation material
PvR
Contacts material
Silver plated contacts
Positive opening
With
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
18 CENTIMETER
Package 1 length
20 CENTIMETER
Package 1 weight
156 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
