ZCMD4D

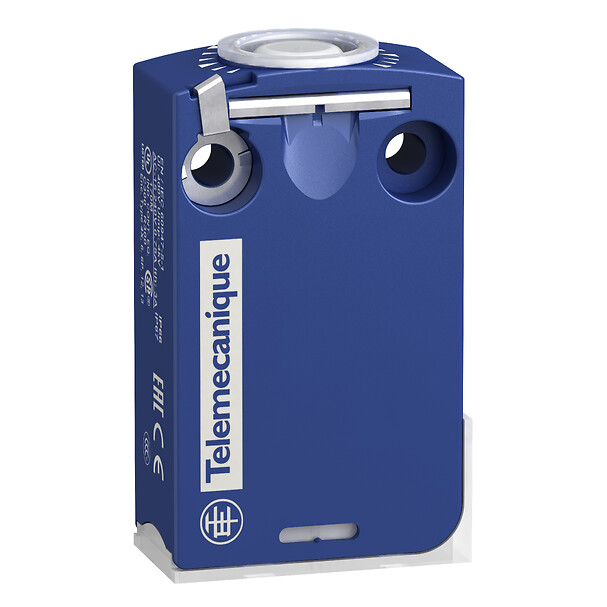

Limit switch body, Limit switches XC Standard, ZCMD, 2NC+2 NO, silver, snap action

arrow

Commercialized

green premium
Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch body
Device short name
ZCMD
Design
Miniature
Body type
Plug-in body
Associated head
ZCE02
ZCE67
ZCE62
ZCE64
ZCE11
ZCE65
ZCEF2
ZCE13
ZCE09
ZCEH0
ZCE63
ZCE08
ZCE07
ZCE10
ZCE29
ZCE14
ZCE06
ZCE21
ZCEH2
ZCEF0
ZCEG1
ZCE66
ZCE05
ZCE28
ZCE01
ZCE27
ZCE24
Body material
Zamak
Number of poles
4
Contacts type and composition
2 NC + 2 NO
Contact operation
Snap action
Product compatibility
XCMD
Associated connection component
ZCMC4DL2
ZCMC4DL5
ZCMC4DL1
Electrical connection
Plug-in without pre-cabled connection
Contacts insulation form
Zb
Contacts material
Silver plated contacts
Positive opening
With
Minimum actuation speed
0.01 m/min
Contact code designation
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A
C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 V (pollution degree 3) conforming to UL 508
400 V (pollution degree 3) conforming to IEC 60947-5-1
300 V (pollution degree 3) conforming to CSA C22.2 No 14
Maximum resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60664
4 kV conforming to IEC 60947-1
Short-circuit protection
6 A cartridge fuse, type gG
Electrical durability
5000000 cycles, DC-13 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Width
30 mm
Height
51 mm
Depth
16 mm
Ambient air temperature for storage
-40…70 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.1 cm
Package 1 Width
1.6 cm
Package 1 Length
3.0 cm
Package 1 Weight
60.0 g
Unit Type of Package 2
P06
Number of Units in Package 2
1280
Package 2 Height
70.0 cm
Package 2 Width
60.0 cm
Package 2 Length
80.0 cm
Package 2 Weight
95.048 kg
Unit Type of Package 3
S01
Number of Units in Package 3
40
Package 3 Height
15.0 cm
Package 3 Width
15.0 cm
Package 3 Length
40.0 cm
Package 3 Weight
2.613 kg
Sustainable offer status
Green Premium product
REACh Regulation
REACh Declaration
EU RoHS Directive
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
Yes
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
