ZCY39

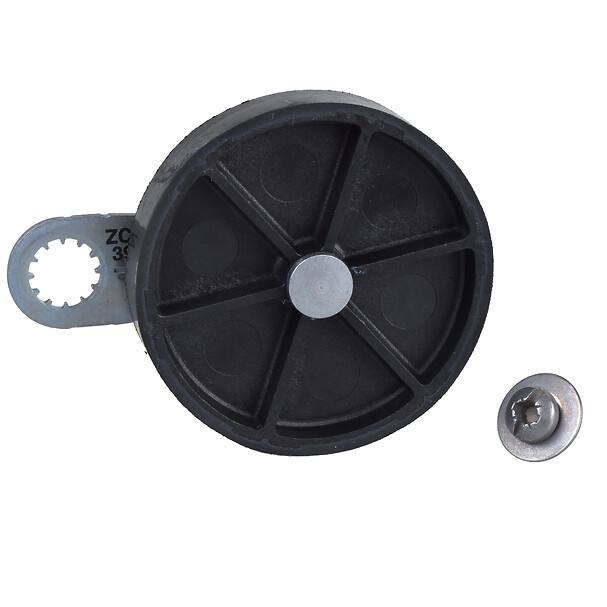

Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller Ø 50 mm

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch lever
Device short name
ZCY
Product compatibility
XCKD
XCKP
XCKT
Movement of operating head
Rotary
Type of operator
Roller lever spring return thermoplastic (roller diameter 50 mm)
Type of approach
Lateral approach
Switch actuation
By 30° cam
Positive opening
With
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
6.5 CENTIMETER
Package 1 length
5 CENTIMETER
Package 1 weight
0.027 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.454 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
