ZCY45

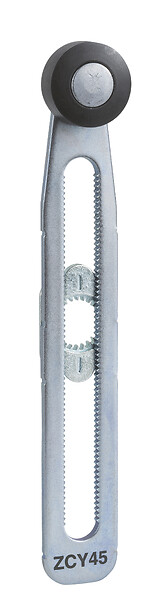

Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller variable length

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH LEVER
Device short name
ZCY
Product compatibility
XCKD
XCKP
XCKT
XCMD
Movement of operating head
ROTARY
Type of operator
Roller lever spring return thermoplastic (variable length)
Type of approach
LATERAL APPROACH
Switch actuation
BY 30 D CAM
Positive opening
WITH
Environmental characteristic
STANDARD
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.9000 CENTIMETER
Package 1 width
1.5000 CENTIMETER
Package 1 length
10.3000 CENTIMETER
Package 1 weight
22.0000 GRAM
Unit type of package 2
BB1
Number of units in package 2
10
Package 2 height
39.0000 CENTIMETER
Package 2 width
105.0000 CENTIMETER
Package 2 length
154.0000 CENTIMETER
Package 2 weight
0.2240 KILOGRAM
For all Reach Rohs enquiries contact us at
sustainability@tesensors.com

Expand all
