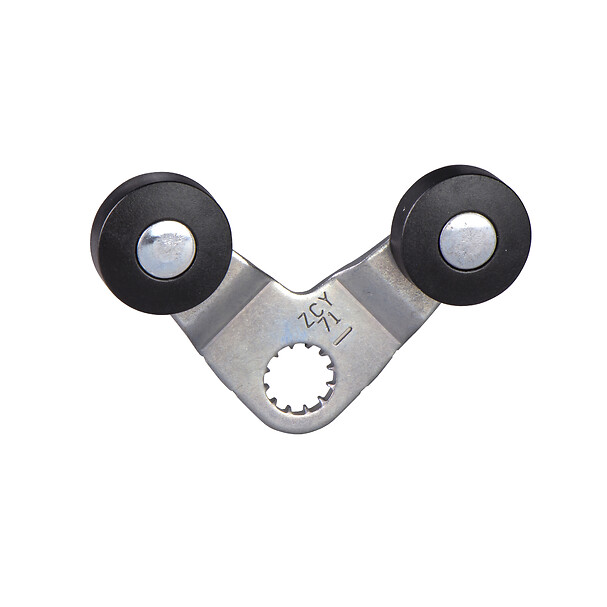

Limit switch lever, Limit switches XC Standard, ZCY, forked arm with rollers 1 track

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch lever
Device short name
ZCY
Product compatibility
XCKD
XCKP
XCKT
XCMD
Movement of operating head
Rotary
Type of operator
Stay put forked arm with rollers stay put (1 track)
Type of approach
Lateral approach
Switch actuation
By specific cam
Positive opening
Without
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1 CENTIMETER
Package 1 width
6.2 CENTIMETER
Package 1 length
4.2 CENTIMETER
Package 1 weight
0.023 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
200
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.905 KILOGRAM
Indivisible sale quantity
1
California proposition 65
