ZMLPA2P0SH
Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 2 PNP, hysteresis, M12
Commercialised
Expand all
Datasheet
Range of product
OsiSense XM
Product or component type
Electronic pressure sensors
Device short name
ZMLP
Display range
-14.5...6000
[Us] rated supply voltage
24 V DC SELV (voltage limits: 17-33 V)
Current consumption
<= 50 mA
Electrical connection
Female connector M12, 2 pins, male connector M12, 4 pins
Type of output signal
Discrete
Discrete output type
Solid state PNP, 2 NO/NC programmable
Switching function
Hysteresis
Voltage drop
2 VOLT
Marking
CE
Front material
Polyester
Housing material
PBT Valox
Operating position
Any position
Protection type
Overload protection
overvoltage protection
reverse polarity
short-circuit protection
overvoltage protection
reverse polarity
short-circuit protection
Response time on output
<= 3 ms for discrete output
Display type
4 digits 7 segments
Local signalling
2 LEDs (yellow) for light ON when switch is actuated
Response time
300 ms
Delay first up
100 MILLISECOND
Accuracy
<= - 0.1 % of the measuring range
Measurement accuracy
<= 1 % of the measuring range
Display accuracy
<= 1 % of the measuring range
Product certifications
cULus
Standards
IEC 61000-6-2
IEC 61000-6-4
UL 508
IEC 61000-6-4
UL 508
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Vibration resistance
5 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Shock resistance
25 gn conforming to IEC 60068-2-27
Electromagnetic compatibility
Immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to IEC 61000-4-6, surge immunity test: 1 kV conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to IEC 61000-4-2
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.709 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Dimensions

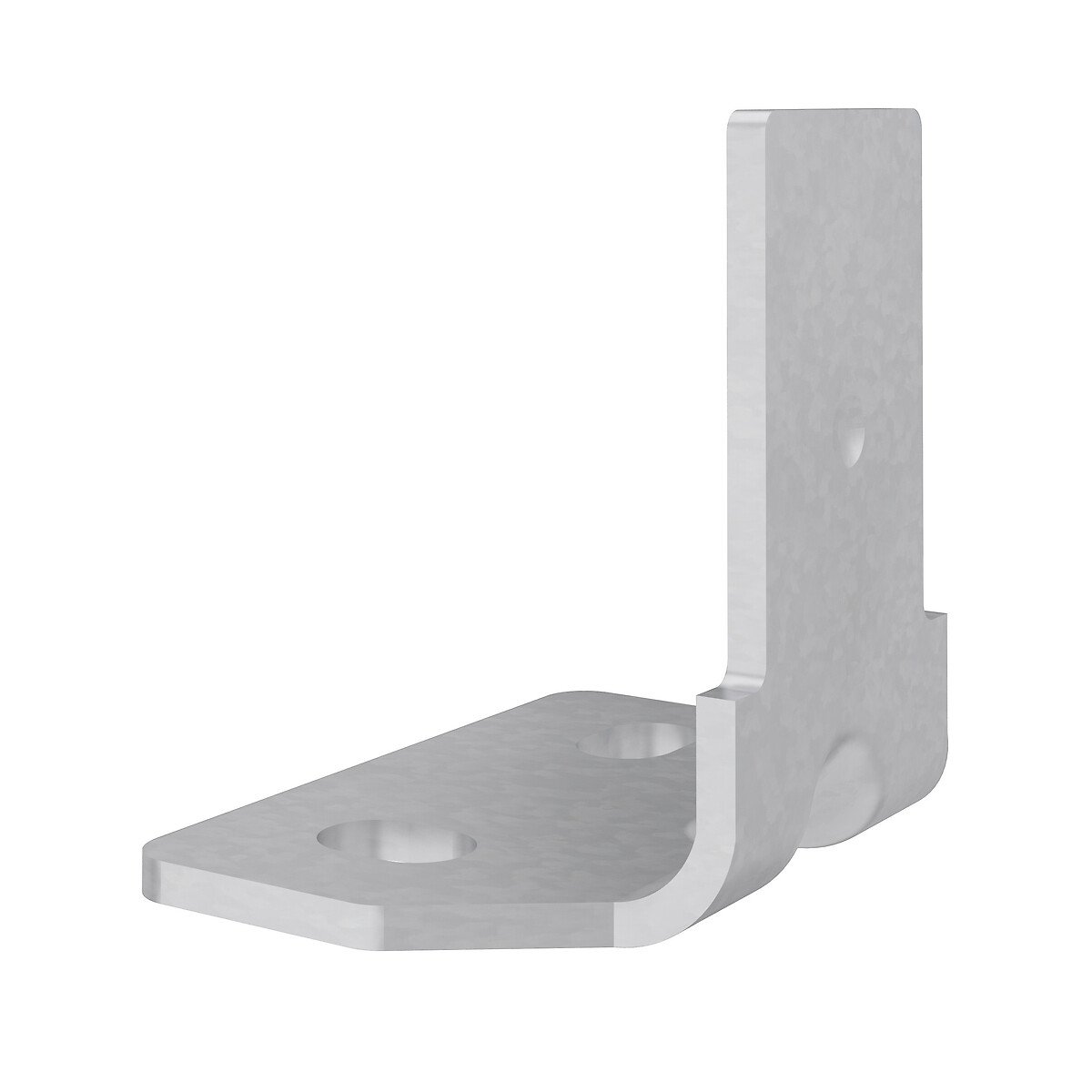

Switch with Metal Bracket for Fixing Horizontally
Dimensions

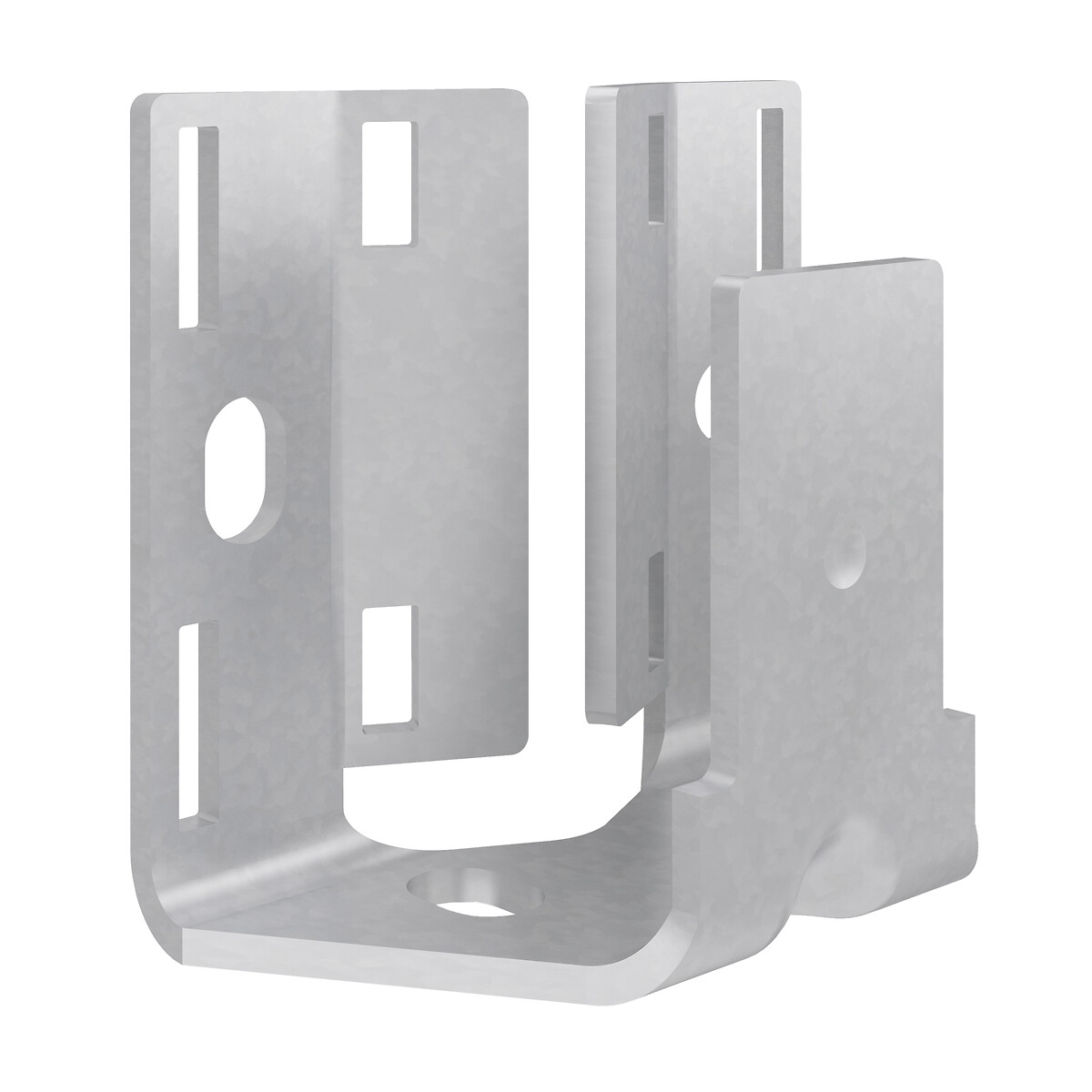

Switch with Metal Bracket for Fixing Vertically or on an Inlet Pipe
Connections and Schema
Output M12 Male Connector Wiring
- (1) Out 1
- (2) Out 2
Connections and Schema
Input M12 Female Connector Wiring
- (1) l in = 4-20 mA
Two Switching Outputs Description. Hysteresis Mode
- X : Time
- Y : Pressure
- (1) Output
- (2) Fixed hysteresis = 10% of the selected display range
- SP1/SP2 : Set points (adjustable from 11% to 98% nominal pressure)
