XY2CB22

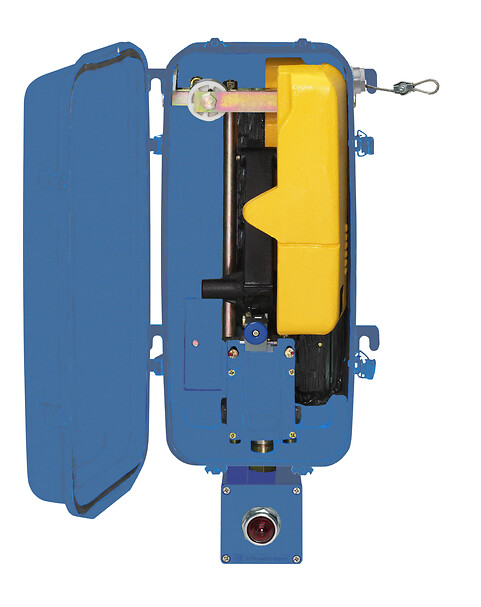

Rope pull switch XY2CB - RH side - 1NC+1NO -pilot light 48V
End of commercialisation Ticarileşme tarihi sonu : Servis tarihi sonu :
Tümünü genişlet
Veri sayfası
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Product or component type
Simple stop rope pull switch
Device short name
XY2CB
Housing colour
Blue
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Local signalling
With pilot light, 48 V
Reset
From inside enclosure
[Us] rated supply voltage
48 V
Contacts type and composition
1 NC + 1 NO
Contact operation
Slow-break
Trigger cable anchor point
RH side
Connections - terminals
Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
Light block supply
Direct
Marking
CE
Positive opening
With conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(13-14)NO
Compatibility code
XY2CB
Standards
IEC 60947-5-1
Protective treatment
TC
IP degree of protection
IP22 (enclosure) conforming to IEC 60529, IP65 (contact housing) conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Tümünü genişlet
Teknik çizimler

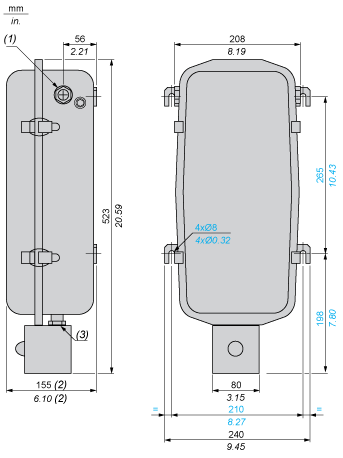

Dimensions
- (1) 2 access points for operating cable.
- (2) + 125 for opening cover.
- (3) 1 tapped entry for n° 13 (Pg 13.5) cable gland.
