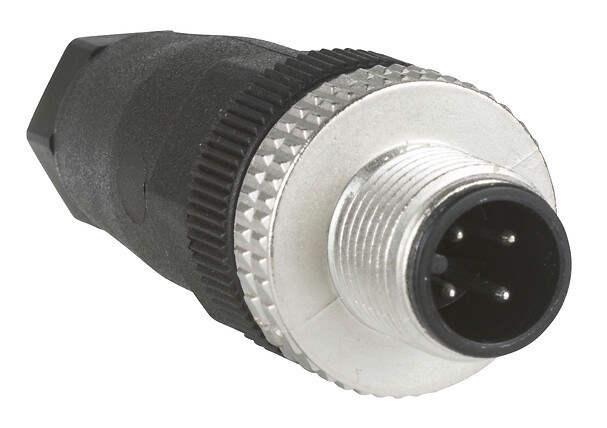

XZCC12MDM40B
Male, M12, 4 pin, straight connector, cable gland Pg 7
Commercialised
Tümünü genişlet
Veri sayfası
Accessory / separate part type
Connector
Accessory / separate part category
Cabling accessories
Electrical connection
Straight male connector M12, 4 pins
Collar material
Metal
Cable connection
-
IP degree of protection
IP67
[Ue] rated operational voltage
125 V AC, 150 V DC
Insulating resistance
1000 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
100
Package 2 height
13.208 CENTIMETER
Package 2 width
25 CENTIMETER
Package 2 length
28 CENTIMETER
Package 2 weight
4.205 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
1200
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
41.75 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Tümünü genişlet
Teknik çizimler
Dimensions
- (1) Cable gland : no. 7 plastic (Pg 7)
Connections and Schemes
Tümünü genişlet
Dökümanlar & İndirmeler
Döküman ismi
Tarih
Boyut
2024-06-28
4263041
2025-01-13
8843040
Döküman ismi
Tarih
Boyut
2024-02-07
7696951
Döküman ismi
Tarih
Boyut
2025-05-16
544270
2025-02-28
439601
Döküman ismi
Tarih
Boyut
2021-11-23
463314
Tümünü genişlet
İlgili ürünler & aksesuarlar

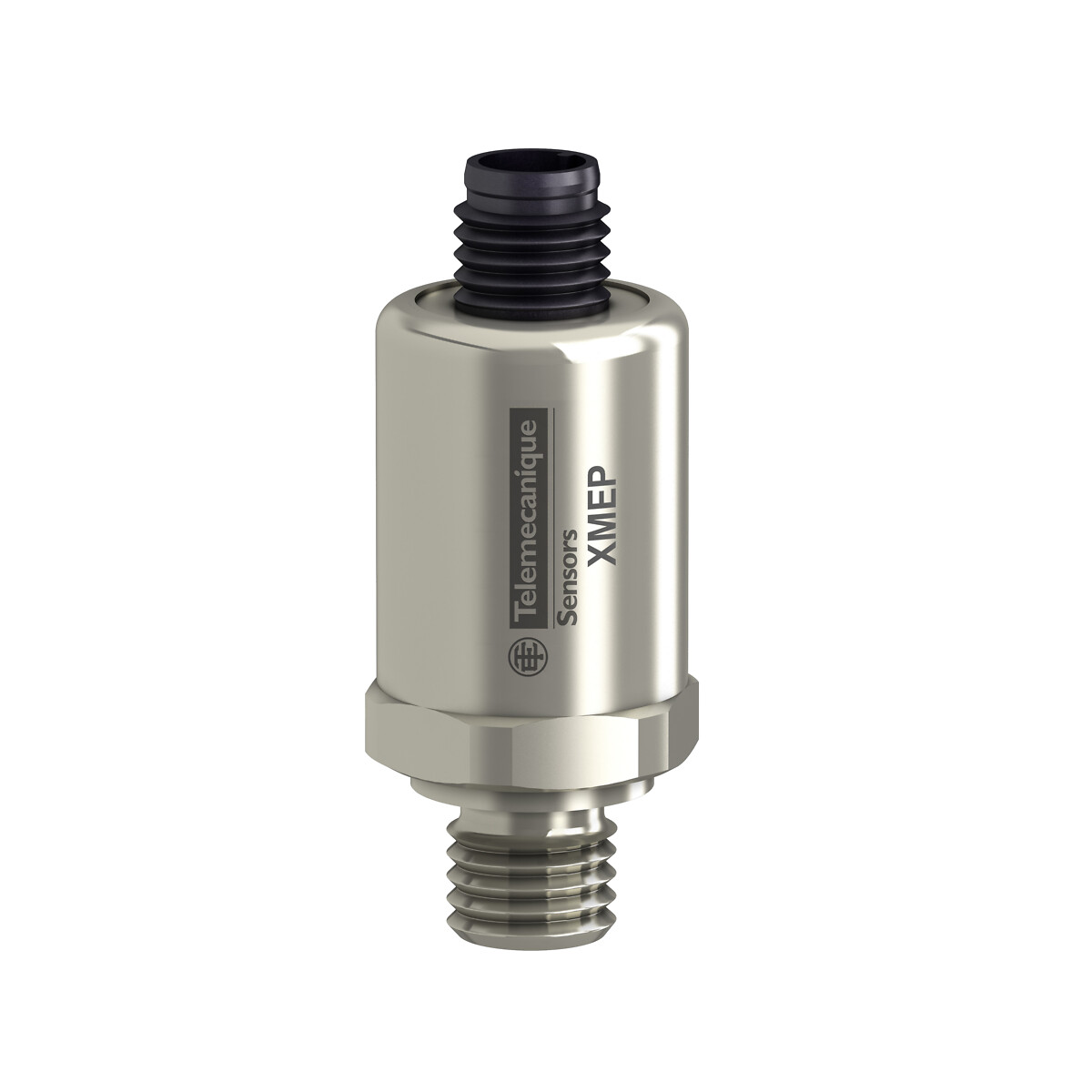

XMEP060BD21F
Electronic pressure sensors, Pressure sensors XM, transmitter, XMEP, 60 bar, G1/4 A male, 4...20 mA, M12, set of 1
XMLG016D21
Electronic pressure sensors, Pressure sensors XM, sensor XMLA, 0...16 bar, G 1/4 A (male), 24 V, 4...20 mA
XMLK200P2D23
Electronic pressure sensors, Pressure sensors XM, sensor XMLK, 0...200 PSI, 1/4NPT, 4...20 mA, M12, set of 1

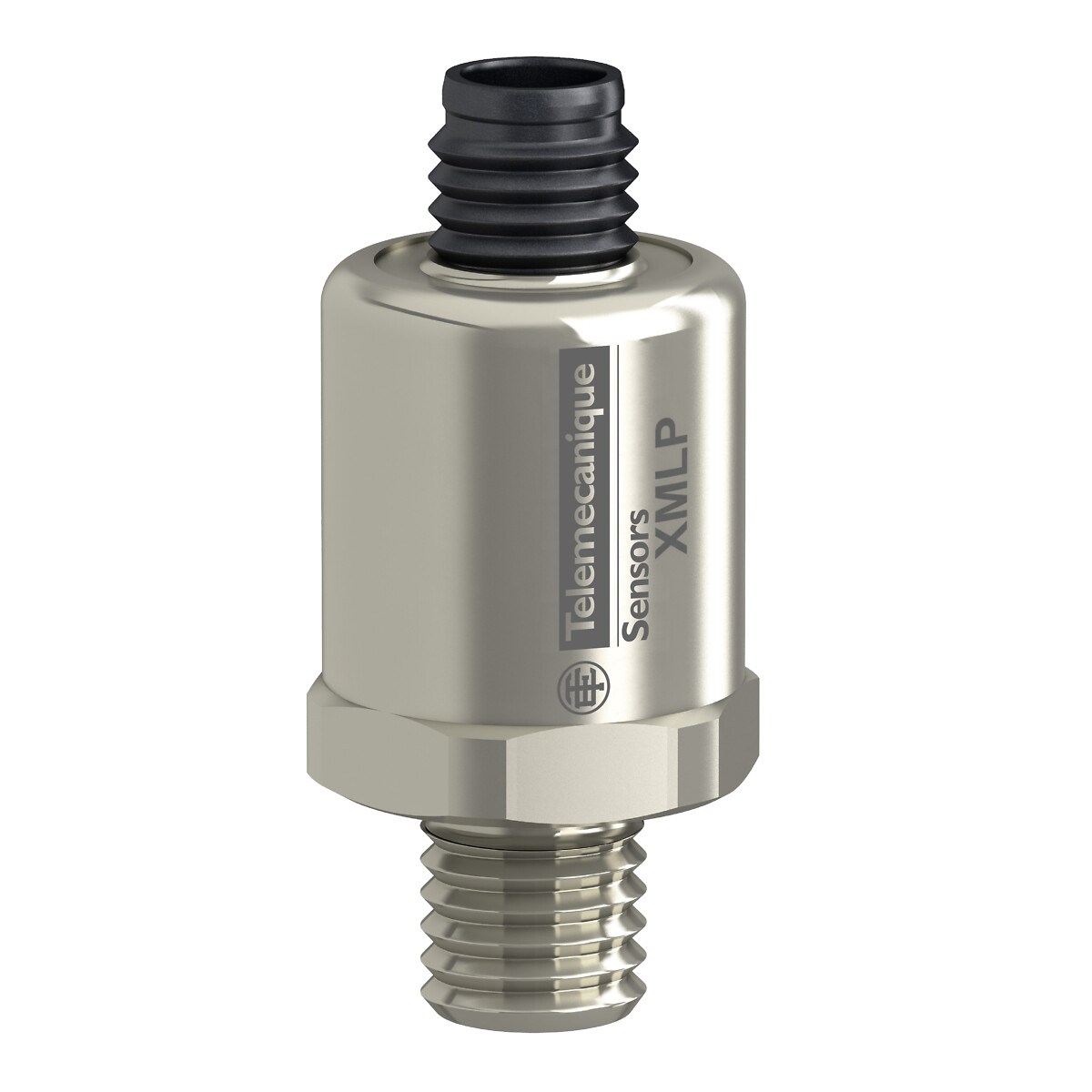

XMLP100PD230
