XUM2AKSBL2T

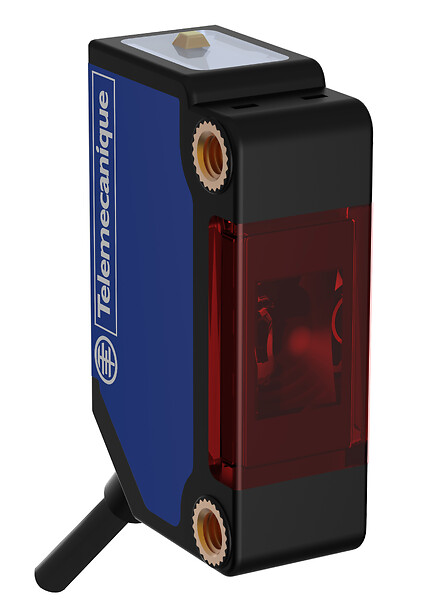

Photoelectric sensors XU, miniature, thru beam, Sn=15 m, emitter, cable 2 m

End of commercialisation End of commercialization date : End of service date :

XUM2AKSBL2T is replaced by the following product:

XUM2AKXBL2T

Photoelectric sensors XU, miniature, thru beam, Smax=30 m, transmitter, cable 2 m

Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor transmitter
Sensor name
XUM
Sensor design
Miniature
Detection system
Thru beam
Material
Plastic
Supply circuit type
DC
Wiring technique
2-wire
Electrical connection
Cable
Emission
-
Enclosure material
PBT
Lens material
Modified polyarylate
Status LED
-
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Maximum voltage drop
<2 V
Current consumption
12 mA no-load
Delay first up
100 MILLISECOND
Vibration resistance
+/- 1.5 mm (f = 10-55 Hz)2 hours in each direction X, Y and Z conforming to IEC 60068-2-6
Shock resistance
500 m/s² for X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
16 CENTIMETER
Package 1 width
2 CENTIMETER
Package 1 length
11 CENTIMETER
Package 1 weight
63 GRAM
Unit type of package 2
BB1
Number of units in package 2
1
Package 2 height
20 CENTIMETER
Package 2 width
0.1 CENTIMETER
Package 2 length
15 CENTIMETER
Package 2 weight
63 GRAM
Unit type of package 3
S01
Number of units in package 3
30
Package 3 height
15 CENTIMETER
Package 3 width
15 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
2.19 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

Transmitter. Pre-cable Version

epds

Transmitter. Pre-cable Version

epds
  • (1) Power supply indicator (orange)
  • (2) Transmission

Connections and Schema

DC Transmitter

epds
  • BN : Brown
  • BU : Blue

Mounting and Clearance

Tightening Torque

epds
  • (1) Base mounting fixing bracket

Performance Curves

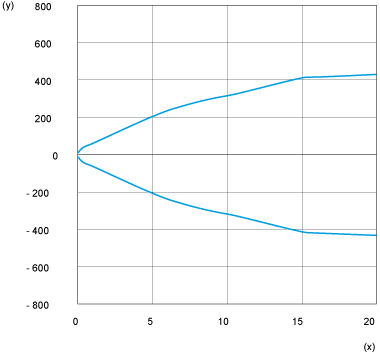

Thru-beam System

epds

Thru-beam System

epds
  • (1) Transmitter
  • (2) Receiver
  • (y) Parallel movement in mm
  • (x) Distance in m
