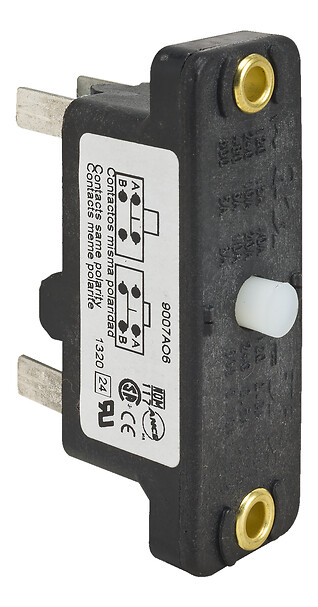

Operator profile
Plunger head
Operator material
Cast zinc
Movement of operating head
Linear
Type of operator
Spring return plunger plastic with thermoplastic end
Type of approach
Vertical approach, 1 direction
Electrical connection
1…2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contacts type and composition
NC-NO, switch function: SPDT-DB
Contact operation
Snap action
Contacts material
Silver contacts
Terminals description ISO n°1
(1-2)NC
(3-4)NO
Minimum force for tripping
0.63 lbf
Maximum force for tripping
0.88 lbf
[Ie] rated operational current
5 A at 600 V AC, A600 conforming to NEMA rating designation
6 A at 480 V AC, A600 conforming to NEMA rating designation
10 A at 240 V AC, A600 conforming to NEMA rating designation
15 A at 120 V AC, A600 conforming to NEMA rating designation
0.1 A at 250 V DC
0.25 A at 125 V DC
[Ithe] conventional enclosed thermal current
15 A
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block
600 V conforming to CSA C22.2 No 14 for contact block
