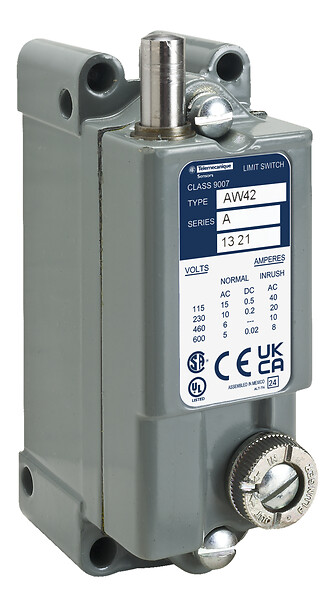

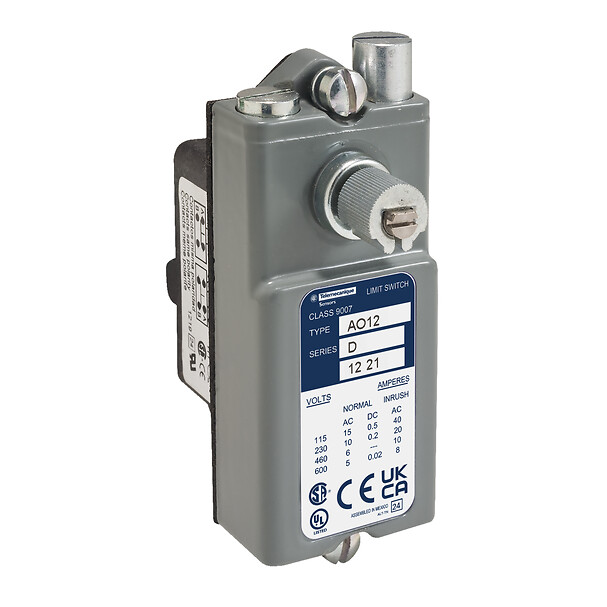

Mounting mode
Surface mounting deep box
Operator profile
Rotary head
Operator material
Cast zinc
Movement of operating head
Rotary
Type of operator
Spring return without operating lever cast zinc
Switch actuation
CCW convertible to CW
From left convertible to right
Type of approach
Lateral approach, 1 direction programmable
Electrical connection
1…2 cables for screw-clamp terminals (AWG 22...AWG 12)
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition
NC-NO, switch function: SPDT-DB
Contact operation
Snap action
Contacts material
Silver contacts
Terminals description ISO n°1
(1-2)NC
(3-4)NO
Minimum torque for tripping
0.31 N.m
Maximum displacement angle
30 °
Maximum actuation speed
130 ft/min with 30° cam angle, levers only
90 ft/min with 45° cam angle, levers only
Repeat accuracy
+/- 0.002 in linear travel of cam on 1.38 in long lever arm
[Ie] rated operational current
5 A at 600 V AC, A600 conforming to NEMA rating designation
6 A at 480 V AC, A600 conforming to NEMA rating designation
10 A at 240 V AC, A600 conforming to NEMA rating designation
15 A at 120 V AC, A600 conforming to NEMA rating designation
0.02 A at 600 V DC
0.2 A at 250 V DC
0.5 A at 125 V DC
[Ithe] conventional enclosed thermal current
15 A
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to UL 508 for contact block
600 V conforming to CSA C22.2 No 14 for contact block
