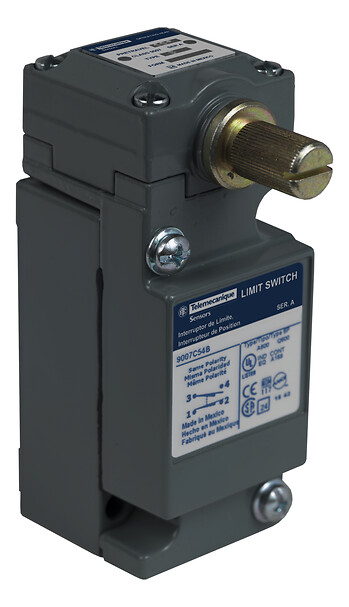

9007C54B
Limit switch, 9007, 600 V 10amp c +options
Commercialised
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Provided equipment
Receptacle
Head type
Rotary head
Type of operator
spring return lever arm (standard pre-travel) (to be ordered separately
Cable entry
NPT conduit entry, cable outer diameter: 0.5-0.5 in
Contacts type and composition
1 NO + 1 NC
Switch actuation
CW
Contact operation
Snap action
Body material
Zinc alloy
Contacts material
Silver alloy (Ag/Ni)
Switch function
SPDT-DB
Contact form
Form Z
Local signalling
without
Product certifications
CE
CSA
UL listed
CSA
UL listed
Package 1 height
4.318 CENTIMETER
Package 1 width
7.112 CENTIMETER
Package 1 length
10.922 CENTIMETER
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
600 GRAM
Unit type of package 2
CAR
Number of units in package 2
10
Package 2 height
12.446 CENTIMETER
Package 2 width
14.732 CENTIMETER
Package 2 length
22.86 CENTIMETER
Package 2 weight
5.729 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
2024-01-31
765681
Document name
Date
Size
7/18/2024
15469
7/18/2024
19480
7/18/2024
19496
7/18/2024
20506
7/18/2024
20695
7/18/2024
20805
7/18/2024
20889
7/18/2024
20921
7/18/2024
21047
7/18/2024
21693
7/18/2024
21756
7/18/2024
21793
7/18/2024
242766
7/18/2024
34644
7/18/2024
39000
Expand all
Related products & accessories
9007C54A2Y128
Limit switch, 9007, 600 V 10amp c +options
9007C54A2Y247
Limit switch, 9007, 9007C 1 NO/NC, rotary head, CW+CCW, low differential

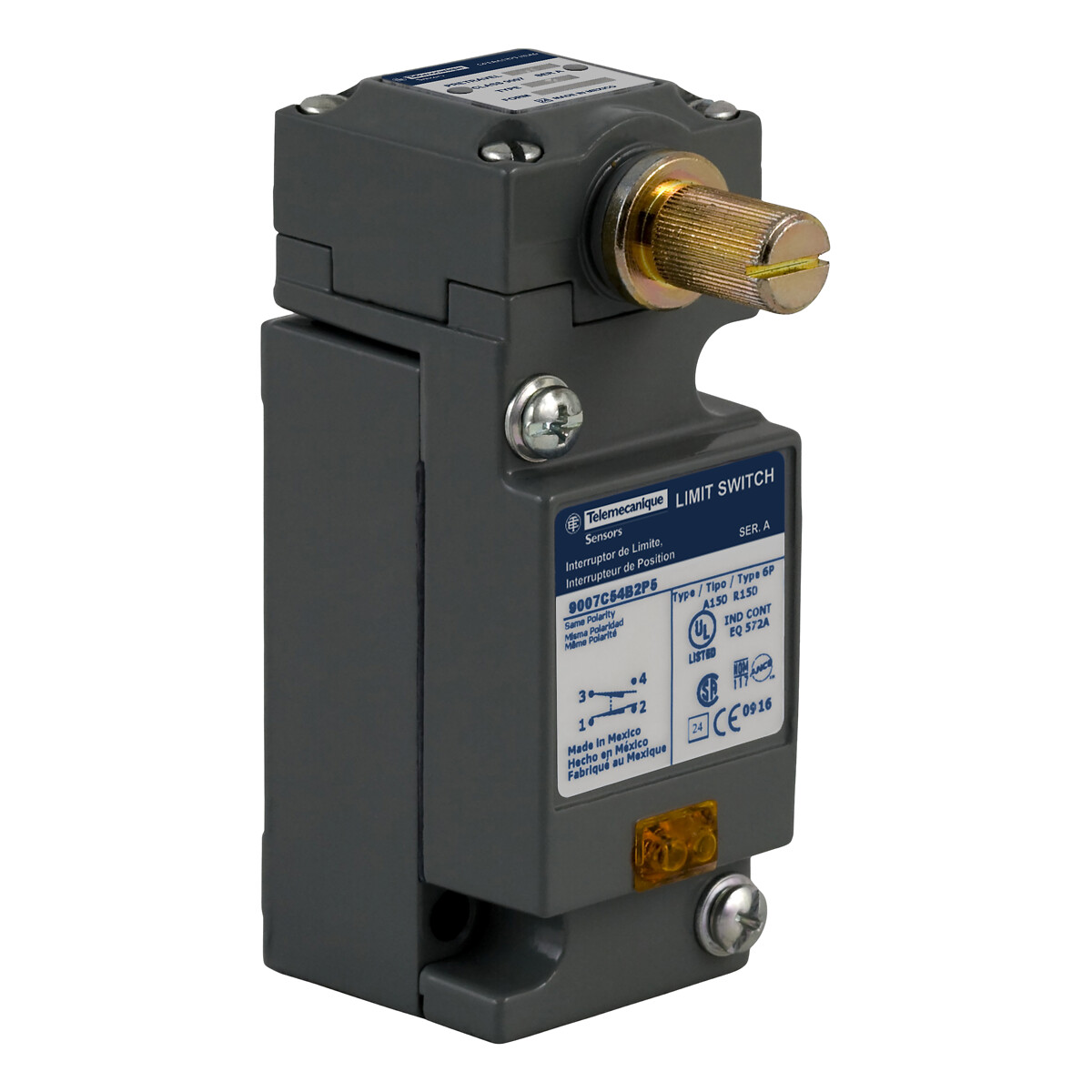

9007C54B2P10Y19021
