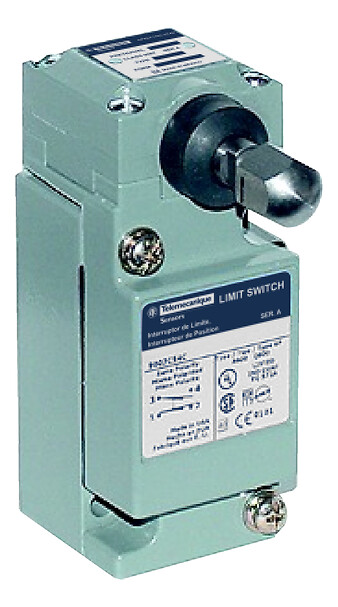

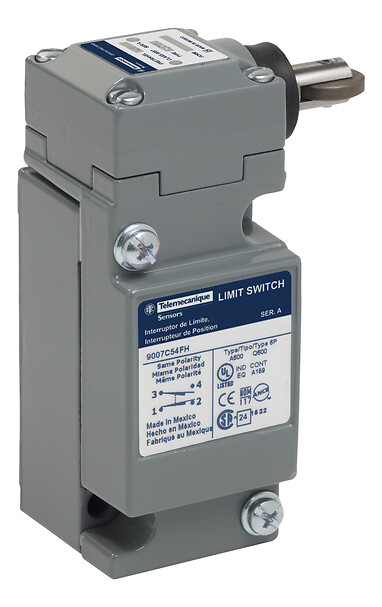

9007C54FH
Limit switch, 9007, 600 V 10amp c +options
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Heavy duty
Device short name
C
Head type
Plunger head
Type of operator
spring return
side roller plunger
side roller plunger
Switch actuation
Horizontal
Cable entry
NPT conduit entry, cable outer diameter: 12.70 mm
Contacts type and composition
1 NO/1 NC
Contact operation
Snap action
Operating distance
0.25 inch
Operating travel
0.76 mm
2.03 mm
2.03 mm
Body material
Zinc alloy
Switch function
SPDT-DB
Contact form
Form Z
Contacts material
Silver alloy (Ag/Ni)
[Ie] rated operational current
10 A, A600
10 A, Q600
10 A, Q600
[Ui] rated insulation voltage
600 V
Product certifications
UL listed
CE
CSA
CE
CSA
Provided equipment
Receptacle
Ambient air temperature for operation
-18…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
27.419 cm
Package 1 Width
10.795 cm
Package 1 Length
69.645 cm
Package 1 Weight
566.991 g
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
