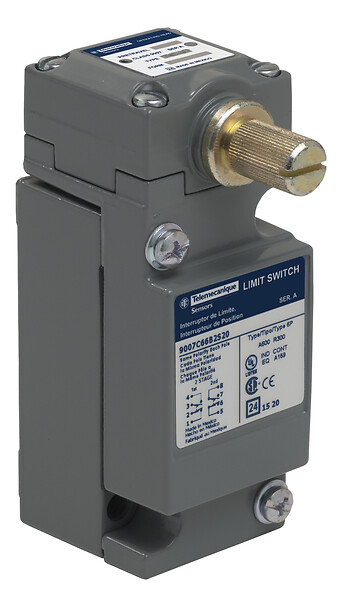

9007C66B2S20
9007, limit switch 600 V 10amp c special +opti
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Heavy duty
Device short name
C
Head type
Turret head rotary lever
Type of operator
spring return lever arm (first stage : 10° - second stage : 2.5°) (to be ordered separately
spring return lever arm (standard pre-travel)
spring return lever arm (standard pre-travel)
Switch actuation
CW and CCW
Cable entry
NPT conduit entry, cable outer diameter: 12.70 mm
Contacts type and composition
2 NO/2 NC
Contact operation
Snap action
Two stage
Two stage
Body material
Zinc alloy
Switch function
SPDT-DB
Contact form
Form Z
Contacts material
Silver alloy (Ag/Ni)
Minimum torque for tripping
0.45 N.m
Tripping angle
4 °
Maximum displacement angle
90 °
[Ie] rated operational current
10 A, A600
10 A, R300
10 A, R300
[Ui] rated insulation voltage
600 V
Product certifications
UL listed
CE
CSA
CE
CSA
Provided equipment
Receptacle
Ambient air temperature for operation
-29…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.3 cm
Package 1 Width
6.9 cm
Package 1 Length
10.7 cm
Package 1 Weight
571.5 g
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
