9007CT54

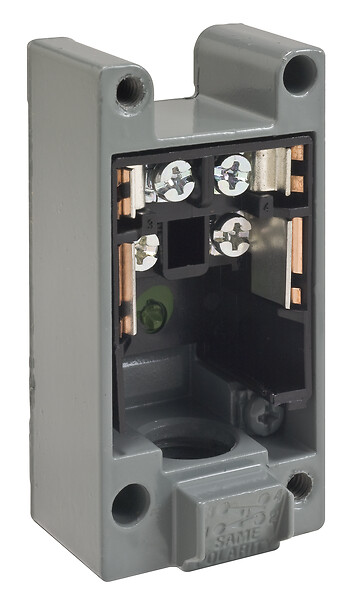

Limit switch base, 9007, receptacle c +options
Commercialized
Expand all
Datasheet
Range of produc
9007
Series name
Heavy duty
Product or component type
Limit switch base
Device short name
9007C
Body type
Standard plug-in
Product compatibility
9007C
Electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1…2
Cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Ambient air temperature for operation
-29…85 °C for standard environment
Environmental characteristic
Standard environment
Sale per indivisible quantity
1
Associated head
9007C

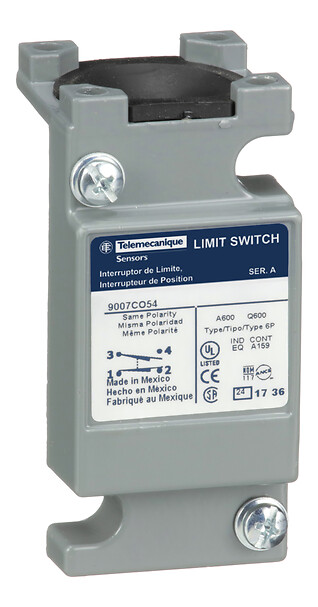

Associated connection component
9007CO54
Body material
Zinc
Function available
-
Mechanical durability
10000000 cycles
Width
39.37 mm
Height
79.76 mm
Depth
22.86 mm
Net weight
0.32 kg
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10…150 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250
NEMA 2 conforming to Nema type 250
NEMA 4 conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 12 conforming to Nema type 250
NEMA 13 conforming to Nema type 250
NEMA 2 conforming to Nema type 250
NEMA 4 conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 12 conforming to Nema type 250
NEMA 13 conforming to Nema type 250
IP degree of protection
IP67 conforming to IEC 60529
Electrical shock protection class
Class 0 conforming to IEC 61140
Ambient air temperature for storage
-29…85 °C
Protective treatment
Epoxy powder coat
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25.806 cm
Package 1 Width
10.16 cm
Package 1 Length
65.548 cm
Package 1 Weight
317.515 g
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
